Brand: Tripp-Lite
|
SKU:
812264

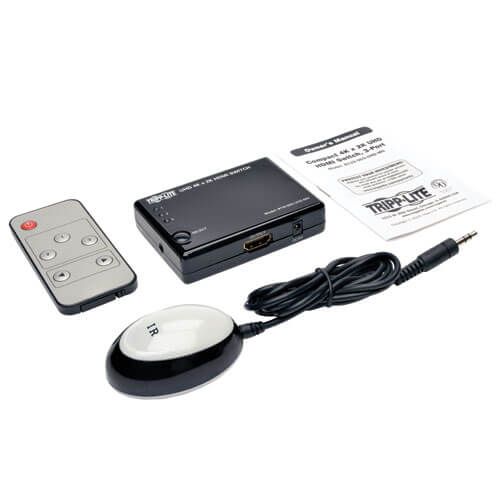

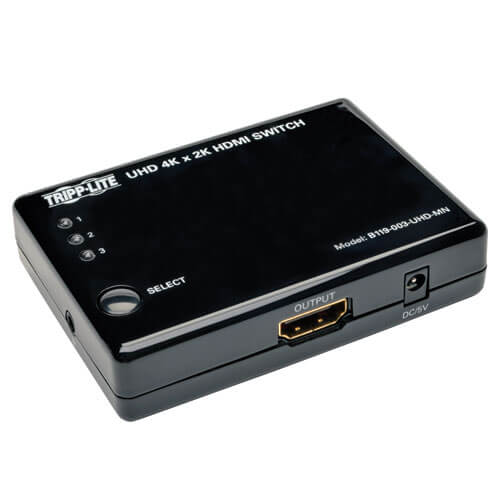

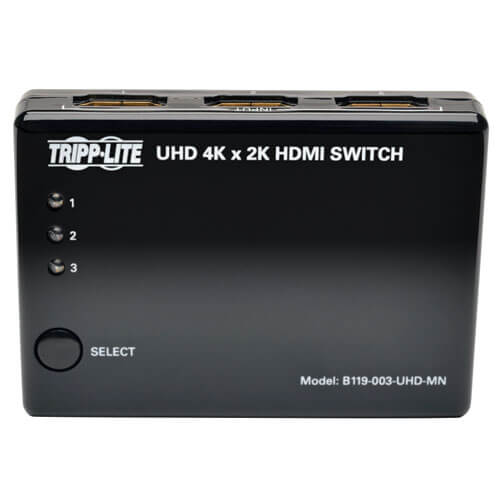

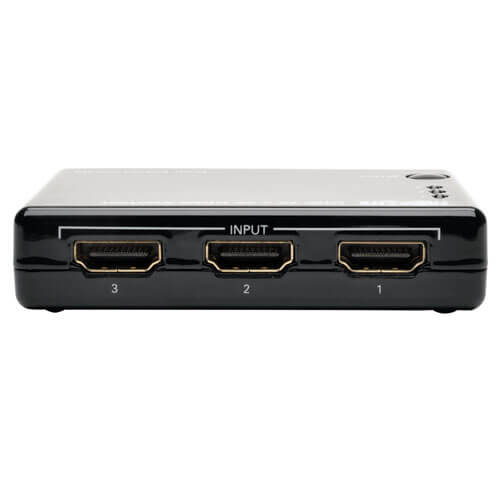

Tripp-Lite B119-003-UHD-MN | 3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDCP 1.4, EDID
Regular price
$33.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B119-003-UHD-MN | 3-Port HDMI Mini Switch with Remote Co...
Regular price
$33.27
Unit price
Description
Description
The B119-003-UHD-MN 3-Port Mini HDMI Switch allows you to connect three HDMI source devices to one port on an HDMI monitor and switch back and forth between them. For instance, you can connect your Blu-ray player, video game system and cable/satellite DVR to one HDMI port on your high-definition television. Or you can connect three computers or media centers to a monitor for displaying digital signage or giving presentations.
Switch between source devices using buttons on the unit or the included remote control. The included IR extender receiver lets you hide the unit out of sight while still being able to switch devices up to 16 feet (5 meters) away using the remote. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-003-UHD-MN ensures top-quality audio/video applications with Ultra High Definition (UHD) video resolutions up to 4K at 30 Hz (3840 x 2160) and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby True-HD and 7.1-channel surround sound audio. It's compatible with 3D, HDCP and EDID. Hassle-free functionality requires no software, drivers or external power supply. Sets up in seconds.
Features
- Connects 3 HDMI Devices to 1 HDMI Display
- Switch between source devices via pushbuttons on unit or included remote control
- Ideal for home audio/video applications, presentations and digital signage
- Included IR extender receiver lets you control devices from a distance using the remote
- Automatically switches to next available device when currently used device is powered off
- Features Top-of-the-Line Audio and Video
- Supports Ultra High Definition (UHD) video resolutions up to 4K @ 30 Hz (3840 x 2160)
- Supports 48-bit True Color (16 bits per channel)
- Supports DTS-HD, Dolby True-HD and 7.1-channel surround sound audio
- Compatible with 3D, HDCP 1.4 and EDID
- Sets Up in Seconds
- Plug-and-play operation with no software required for easy, immediate installation
Features & Specifications
| Port Selection | Pushbutton |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332189233 |
|---|---|
| Technology | HDMI; IR |
Video
| Max Supported Video Resolution | 4K @ 30Hz (3840 x 2160) |
|---|---|
| Max Supported Color Depth | 48-bit Deep Color |
| 3D Video Supported | Yes |
Audio
| Audio Specification | DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound |
|---|
Input
| Bus Powered | Yes |
|---|
User Interface, Alerts & Controls
| LED Indicators | Red (1, 2, 3) |
|---|
Environmental
| Operating Temperature Range | 32 to 113 °F (0 to 45 °C) |
|---|---|
| Storage Temperature Range | 14 to 176 °F (-10 to 80 °C) |
| BTUs | 3.4 BTU/Hr |
| Power Consumption (Watts) | 1 |
| Operating Humidity Range | 10% to 85 % RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Communications
| EDID Compatible | Yes |
|---|---|
| IR Remote Extension Support | Yes |
| Consumer Electronics Control (CEC) Supported | Yes |
Connections
| Ports | 3 |
|---|---|
| Side A - Connector 1 | (3) HDMI (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
Standards & Compliance
| Certifications | CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
