Tripp-Lite B119-1X4-4K6-VW | 1x4 Video Wall Controller 4K60Hz 1 HDM...
Description
Description

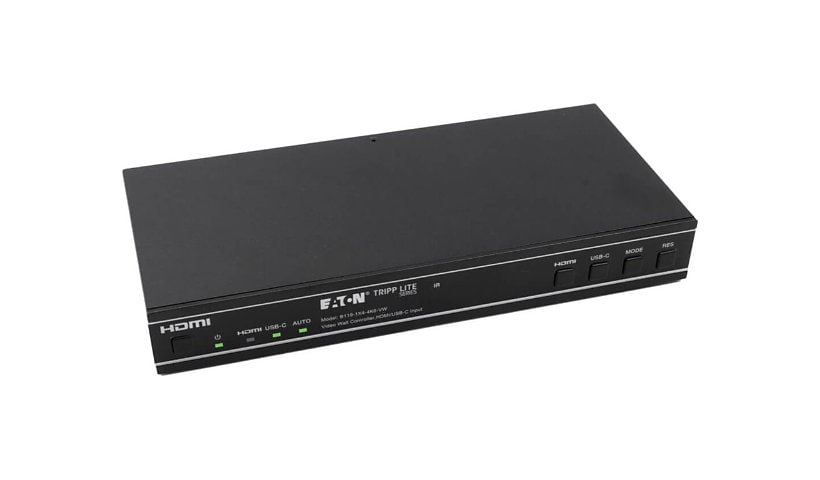

This Video Wall Controller is designed to capture, convert, route and distribute all video signal formats to a video wall. It features HDMI and USB-C input with resolution up to 4K at 60 Hz and four HDMI outputs to create eight video wall splicing modes to be stretched either horizontally or vertically: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4 and 2x2. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands. Note: In video wall mode (except 1x1), only the screens that are selected to perform video wall splicing will display images. Their bezel can be adjusted.
The B119-1X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Tripp-Lite - B119-1X4-4K6-VW - Features
- Extends 4K video from one HDMI or USB-C source to 4 HDMI displays in multiple configurations
- Supports HDMI and USB-C input with UHD resolutions up to 4K @ 60Hz 4:4:4
- Allows flexible control via front-panel buttons/IR remote or RS-232 commands
- 3 Year Eaton Warranty
- Captures/converts/routes and distributes 4K audio/video to a 4K video wall
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Plug-and-play operation with no software required
Specifications
Specifications
Tripp-Lite - B119-1X4-4K6-VW - Specifications
| Brand | Eaton |
|---|---|
| Product Line | Eaton Tripp Lite series |
| Manufacturer | Tripplite Cables |
| Compliant Standards | HDCP 2.2 |
| Features | 12-bit Deep Color support, 3D support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, DTS support, HDR support, LPCM 2.0 support, LPCM 5.1 support, Metal housing, Push button |
| Form Factor (Hubs & Switches) | Desktop, Wall-mountable |
| Ports | 4 |
| Product Type | Video/audio switch |
| Status Indicators | Auto, HDMI, Power, USB |
| Subcategory | Peripheral sharing and hubs |
| Switching Type | HDMI |
| Interface Provided | 1 x audio output, 1 x HDMI input, 1 x RS232, 1 x SPDIF output, 4 x HDMI output, USB-C input |
| Port Quantity | 4 |
| Port Type | HDMI |
| KVP Max Resolution | 3840 x 2160 |
| Electric Current Required | 0.3 A |
| Frequency | 50/60 hertz |
| Output Current | 1 ampere |
| Provided Voltage | 12 volt |
| Required Voltage | AC 100-240 volt |
| Cables | 1 x IR receiver cable - 5 ft, 1 x power adapter - 4 ft, 1 x RS-232 adapter |
| Included Accessories | 2 mounting brackets, 4 screws, International power plugs, Remote control |
| Height | 1.2 inch |
| Weight | 20.81 ounce |
| Color | Black |
