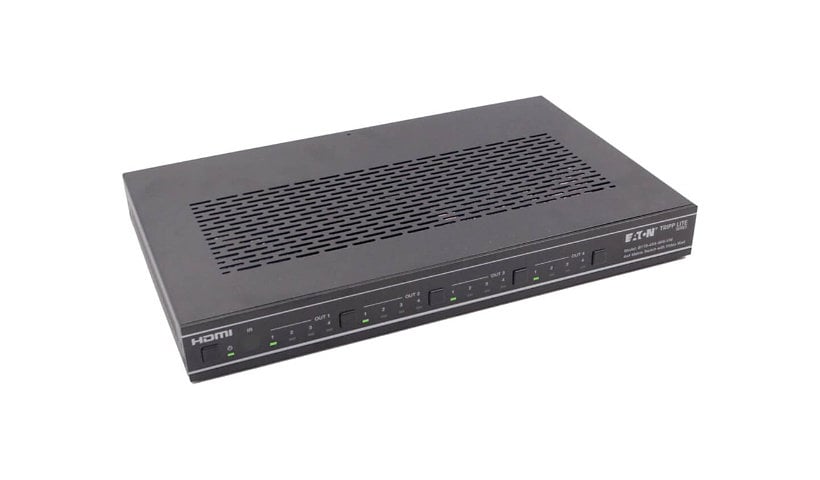

Tripp-Lite B119-4X4-4K6-VW | 4x4 HDMI Matrix Switch w Video Wall Controller 4K60Hz HDR 4:4:4 Multi-Resolution Support
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B119-4X4-4K6-VW | 4x4 HDMI Matrix Switch w Video Wall Co...
Description
Description
This Matrix Switch is a multi-purpose high-speed video processing system that you can configure for two different output modes: 4x4 matrix (with seamless switching) and video wall. It features four HDMI inputs with resolution up to 4K at 60 Hz and four HDMI outputs to create 10 video wall modes: 2x2, 1x2-2, 1x2, 2x1-2, 2x1, 1x3, 1x4, 3x1, and 4x1. You can set display modes via front-panel buttons, the included IR remote, RS-232 commands or TCP/IP. Access the web GUI to visualize content shared over multiple displays.
The B119-4X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Tripp-Lite - B119-4X4-4K6-VW - Features
- Extends 4K video to 4 HDMI displays in video wall configuration or functions as a 4x4 matrix switch
- Supports HDMI input/output with UHD resolutions up to 4K @ 60Hz 4:4:4
- Allows flexible control via front-panel buttons/IR remote/RS-232 commands or TCP/IP
- 3 Year Eaton Warranty
- Features 2 operational modes: 4x4 matrix (seamless switch) and video wall
- Supports multi-resolution output to allow for combination of different display types
- Plug-and-play operation w/ no software required
Specifications
Specifications
Tripp-Lite - B119-4X4-4K6-VW - Specifications
| Brand | Eaton |
|---|---|
| Product Line | Eaton Tripp Lite series |
| Manufacturer | Tripplite Cables |
| Compliant Standards | HDCP 2.2 |
| Features | 12-bit Deep Color support, 3D support, 4:4:4 chroma subsampling support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, Dolby support, Dolby TrueHD support, DTS 96/24 support, DTS support, DTS-HD Master Audio support, HDR support, LPCM support, Metal housing, Multi resolution support, Pushbutton/Hotkey switching, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4 |
| Form Factor (Hubs & Switches) | Desktop |
| Ports | 2 |
| Product Type | Video switch |
| Status Indicators | Power, Signal, Standby |
| Subcategory | Peripheral sharing and hubs |
| Switching Type | HDMI |
| Expansion Slots | Serial RS-232 |
| KVP Max Resolution | 3840 x 2160 |
| Cables | 1 x IR extension cable - 5 ft, 1 x RS-232 adapter |
| Included Accessories | 4 screws, International power plugs, IR receiver cable, IR remote, Mounting brackets, Remote control |
| Height | 1.2 inch |
| Width | 10.6 inch |
| Color | Black |
