Brand: Tripp-Lite
|
SKU:
565121
Tripp-Lite B125-150 | HDMI over Dual Cat5/6 Extender Kit, In-Line Transmitter/Receiver for Video/Audio, Up to 150 ft. (45 m)
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B125-150 | HDMI over Dual Cat5/6 Extender Kit, In-Line T...
Regular price
$165.30
Unit price
Description
Description
Tripp Lite's HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables.
- When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended up to 150-ft. (45.72 m) from the source.
- When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 125-ft. (38.1 m)
- When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended up to 100-ft. (30.5 m) from the source.
- When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 75-ft. (22.86 m)
Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display.

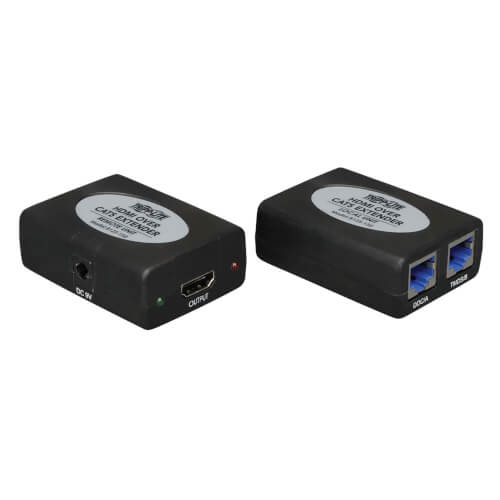

The B125-150 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported.
Features
- Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 150-ft. (45.72 m) using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series)
- Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 100-ft. (30.5 m) using 24Awg, Solid Wire Cat5 cabling
- Extends a 3D signal up to 125-ft. (38.1 m) using 24Awg, Solid Wire Cat6 cabling, or up to 75-ft. (22.86 m) using 24Awg, Solid Wire Cat5 cabling
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- Supports HDCP, EDID and DDC
- Supports 24-bit True Color (8-bits per channel)
- Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
- Supports Lip-Sync Pass Through, and CEC pass through
- Green LED on the remote unit will illuminate to indicate that power is being received
- The Red LED on the remote unit will illuminate only if a working signal is NOT being received. The unit is functioning properly when the Red LED is not illuminated
Features & Specifications
| HDCP Specification | 1.4 |
|---|---|
| Driver Required | No |
| Built-In Equalizer | No |
Specifications
Specifications
Overview
| UPC Code | 37332143723 |
|---|---|
| Product Type | Extender Kit |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.4A; Output: 9V, 1.5A, 4.5 ft. |
Video
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
|---|---|
| Max 720P Range (ft) | 150 |
| Max 1080P Range (ft) | 150 |
| Max 1280 x 720 (720p) Range (ft) | 195 |
| Max 1920 x 1080 (1080p) Range (ft) | 115 |
| Transmitter Video Input | HDMI |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | HDMI |
| Receiver - Number of Video Outputs | 1 |
| Recommended Cabling | N202-Series Cat6 Patch Cable |
| Max Supported Color Depth | 24-bit True Color |
| HDR Support | No |
| 3D Video Supported | Yes |
Audio
| Audio Input | HDMI |
|---|---|
| Audio Output | HDMI |
Power
| Power Source | Receiver end only (Included) |
|---|---|
| Power Source Type | AC Adapter |
| AC Plug Type | NEMA 1-15P |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 0.5A |
| External Power Supply Output Specs (V / A) | 5V/2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.38 |

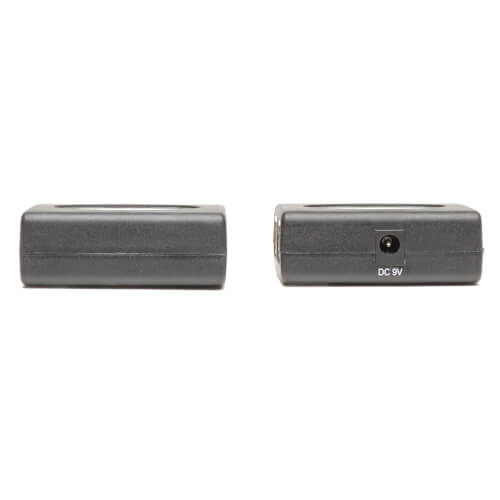

| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 7.5mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | FCC; PSE; TUV; UL; cUL |
| Power Over Cable (PoC) Support | No |
User Interface, Alerts & Controls
| LED Indicators | Power (Green), Signal (Red) |
|---|
Environmental
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
|---|---|
| Storage Temperature Range | 5 to 122 °F (-15 to 50 °C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
Communications
| Max 1024 x 768 Range (ft) | 150 |
|---|---|
| Max 480P Range (ft) | 150 |
| Max 1440 x 900 Range (ft) | 150 |
Connections
| Ports | 1 |
|---|---|

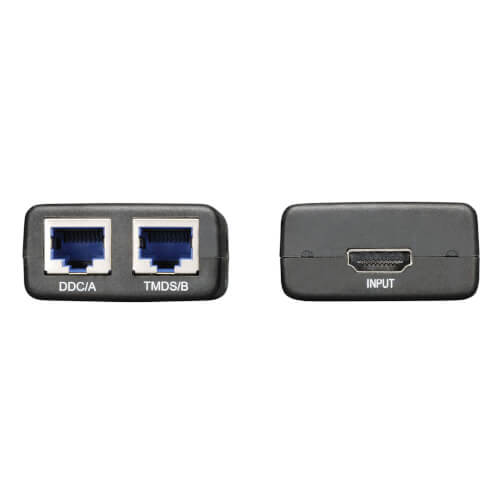

| Side A - Connector 1 | HDMI (FEMALE) |

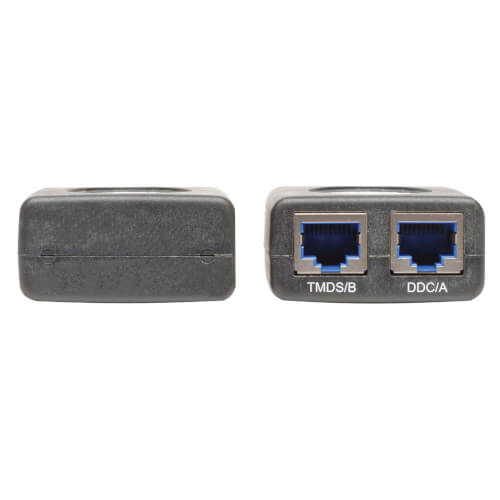

| Side A - Connector 2 | (2) RJ45 (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 2 | (2) RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
