Brand: Tripp-Lite
|
SKU:
9810274

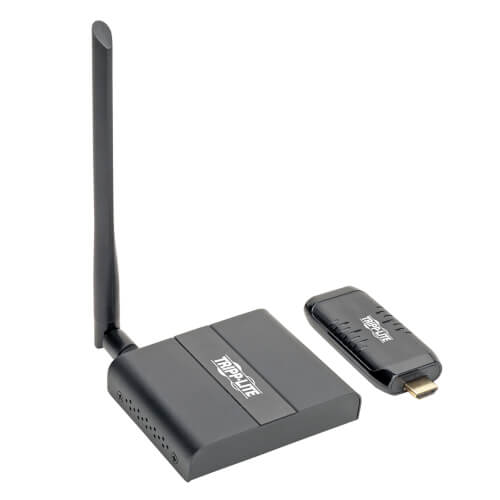

Tripp-Lite B126-1D1-WHD1 | Wireless HDMI Extender Kit, Transmitter/Receiver, IR Control, DisplayPort Adapter, 1080p, Up to 165 ft.
Regular price
$357.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Wirelessly extends an HDMI or DisplayPort 1080p audio/video signal to an HDMI display located up to 165 ft. from the source.
Features
- All-in-One Wireless Extender Ideal for Displaying Video in Boardrooms and Conference Rooms
- This complete wireless HDMI transmitter and receiver system is recommended for video presentations in conference rooms, meeting rooms, trade shows and other locations where connecting long video cables could be a burden. It extends 1080p video and stereo audio signals from an HDMI or DisplayPort source device (Blu-ray player, laptop, media server, etc.) to an HDMI display device (television, monitor, projector) up to 165 feet (50 meters) away. No bulky cabling infrastructure is needed.
- Plug-and-Play Operation for Quick Setup and Immediate Use
- The wireless HDMI audio/video transmitter and receiver works right out of the box with no software or drivers required. Mounting hardware is included for installing the receiver on a wall or other flat surface. Connect the receiver to the display with a user-supplied HDMI cable (such as Tripp Lite's P568-Series), and connect the included IR cables for remote control. The mini transmitter connects directly to the source's HDMI output. By adding the included HDMI-to-DisplayPort adapter, the B126-1D1-WHD1 will also extend 1080p signals from a DisplayPort source.
- Wireless Transmission Saves You Money on Cable and Installation Costs
- The wireless 1080p HDMI transmitter and receiver eliminate more than just hassles. You'll save on the costs of cabling infrastructure and the labor to install it. Cable clutter is reduced, and you will enjoy more flexibility in placement of the source and display with no cables to relocate when you want to reconfigure the room. The mini transmitter and receiver units communicate over a 5 GHz wireless frequency that allows fast data transmission and reduced interference from other wireless sources.
- IR Pass-Through Technology Lets You Control the Video from the Next Room
- The IR cables let you control your source device with its remote (play, pause, fast forward, etc.), while you're standing near the receiver located up to 165 feet away. Make sure the transmitter's IR bulb is within sight of the source and the receiver's IR bulb is in range of the source's remote.
- Transmits Crystal-Clear 1080p Video for High-Definition Presentations
- This wireless HDMI transmitter and receiver system ensures high-definition performance with video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit Deep Color (8 bits per channel) and stereo audio. AES 128 encryption protects your wireless transmissions. LEDs indicate when the mini transmitter and receiver units are receiving power, transmitting data and connected to a wireless signal.
Features & Specifications
| HDCP Specification | 1.2 |
|---|---|
| Driver Required | No |
| Transmission RF Frequency | 5G Wireless |
| Built-In Equalizer | No |
Specifications
Specifications
Overview
| UPC Code | 37332218049 |
|---|---|
| Product Type | Extender Kit |
| Technology | DisplayPort; HDMI; Wireless |
Video
| Video Input | HDMI (FEMALE) |
|---|---|
| Video Output | HDMI (FEMALE) |
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
| Max 1280 x 720 (720p) Range (ft) | 50 |
| Max 1920 x 1080 (1080p) Range (ft) | 165 |
| Transmitter Video Input | HDMI |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | HDMI |
| Receiver - Number of Video Outputs | 1 |
| Max Supported Color Depth | 24-bit True Color |
| HDR Support | No |
| 3D Video Supported | Yes |
| Maximum Signal Range (ft) | 165 |
Audio
| Audio Input | HDMI |
|---|---|
| Audio Output | HDMI |
Power
| Power Source | Transmitter (Optional) and Receiver (Included) |
|---|---|
| Power Source Type | USB; AC Adapter |
| AC Plug Type | NEMA 1-15P; CEE 7/16 Schuko; BS1363; AS/NZS 3112 |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 0.3A |
| External Power Supply Output Specs (V / A) | 5V/2A |
| External Power Supply Cord Length (ft.) | 4 |
| External Power Supply Cord Length (m.) | 1.2 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 10mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | CE; FCC; UL; C-Tick; GS; RoHS |
| Power Over Cable (PoC) Support | No |
User Interface, Alerts & Controls
| LED Indicators | TX: Blue (Power), Red (Wireless Connection); RX: Green (Wireless Connection and Data Transmission) |
|---|
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 158 F (-20 to 70 C) |
| Relative Humidity | 0% to 90% RH, Non-Condensing |
Communications
| Signal Range (ft.) | 164 |
|---|---|
| Network Speed | 10Gbps |
| EDID Compatible | Yes |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | HDMI (MALE) |
| Side A - Connector 2 | 3.5MM (FEMALE) |
| Side A - Connector 3 | MICRO-USB B (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 2 | 3.5MM (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, ROHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
