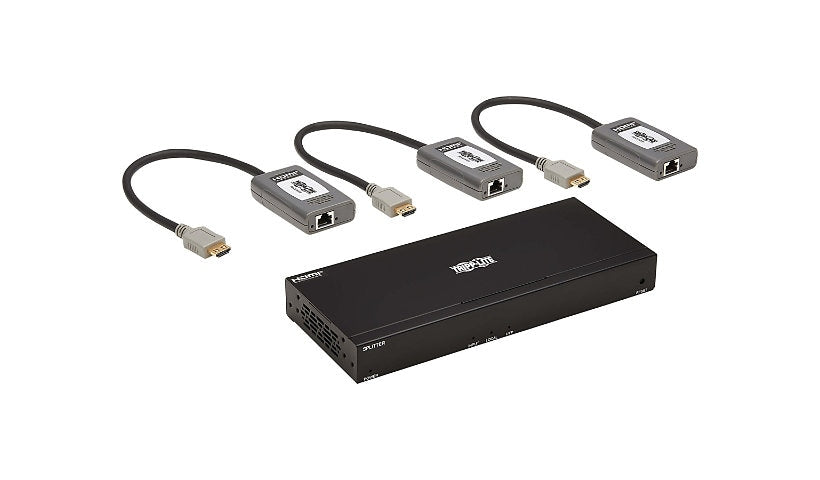

Tripp-Lite B127A-004-BHPH3 | HDMI over Cat6 Extender Kit, 4-Port Sp...
Description
Description
This 4K splitter/receivers combo is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
The included splitter connects to three included pigtail receivers (plus one more optional B127A-Series receiver, sold separately) to extend 4K signals from an HDMI source to four HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding B127A-010-H signal repeaters (sold separately) to the application, you can extend the signal to each connected display up to 400 feet (121.9 meters).
Tripp-Lite - B127A-004-BHPH3 - Features
- 4K splitter/receivers splits and extends a 4K audio/video signal 230 ft via Cat6 cable to 4 HDMI displays
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Power over Cable (PoC) technology provides power to receivers via Cat6 cable
- Supports 4K @ 60Hz video resolutions (4:4:4) (HDMI 20)
- Combines w/ optional B127A-010-H repeaters to extend signal to 400 ft
- TAA Compliant 4-Port HDMI over Cat6 Splitter/receiver -Tripp Lite is now a part of Eaton
Specifications
Specifications
Tripp-Lite - B127A-004-BHPH3 - Specifications
| Brand | Tripp Lite |
|---|---|
| Product Line | Eaton Tripp Lite Series |
| Model | HDMI over Cat6 Extender Kit, 4-Port Splitter/3x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA |
| Manufacturer | Tripplite Cables |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Connectivity Technology | Wired |
| Features | 36-bit Deep Color support, 3D support, 4:4:4 chroma subsampling support, 7.1 channel audio support, Dolby TrueHD support, HDR support, Video mirror mode |
| Form Factor | Wall / pole mountable / rack mountable |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Product Type | Video/audio extender |
| Status Indicators | Power |
| Interface Provided | 1 x HDMI (input) - Type A female, 1 x HDMI (local unit) - Type A female, 3 x HDMI (output) - Type A male, 3 x network (input) - RJ-45 female, 4 x network (output) - RJ-45 female |
| KVP Max Resolution | 3840 x 2160 |
| Frequency | 50/60 hertz |
| Required Voltage | AC 100-240 volt |
| Height | 1.2 inch |
| Weight | 22.89 ounce |
| Width | 9.3 inch |
| Depth | 3.9 inch |
| Color | Black |
| Color Category | Black |
| Compliant Standards | CCC, cUL, FCC, GS, Plug and Play, REACH, RoHS, TUV, UL |
| No | EPEAT Compliant |
| No | TAA Compliant |
| Yes | TCO Certified |
