Tripp-Lite B127A-1A1-BHPH | HDMI over Cat6 Extender Kit, 4K 60Hz, Transmitter and Pigtail Receiver, 4:4:4, PoC, HDR, HDCP
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B127A-1A1-BHPH | HDMI over Cat6 Extender Kit, 4K 60Hz, T...
Description
Description
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The low-profile pigtail-type receiver is ideal for applications in which space around the display is restricted and a larger box-style receiver will not fit.
The B127A-1A1-BHPH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH Transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.
Tripp-Lite - B127A-1A1-BHPH - Features

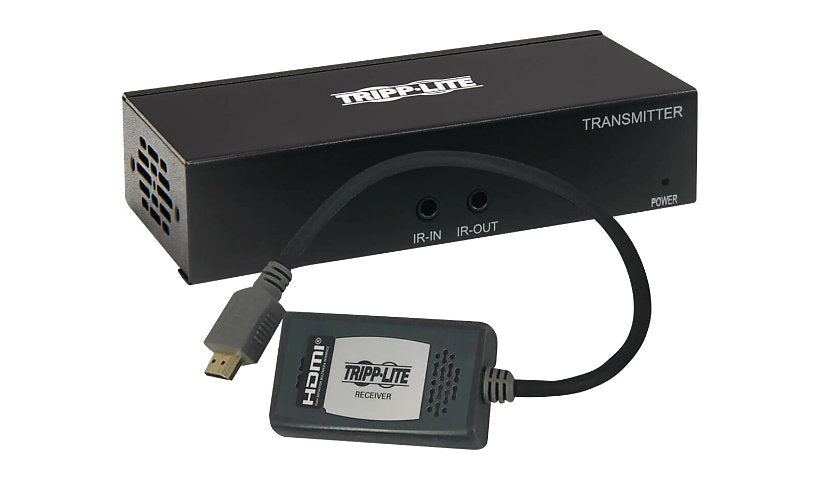

- HDMI extender kit w/ transmitter and pigtail receiver extends a 4K signal via Cat6 cable to an HDMI display up to 230ft away
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Transmitter’s local port shows the 4K image being displayed at the other end
- Supports 4K @ 60 Hz video resolutions (4:4:4) (HDMI 2.0)
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
- TAA Compliant HDMI over Cat6 extender kit/ 4K HDMI extender
Specifications
Specifications
Tripp-Lite - B127A-1A1-BHPH - Specifications
| Brand | Tripp Lite |
|---|---|
| Product Line | Eaton Tripp Lite Series |
| Model | HDMI over Cat6 Extender Kit, 4K 60Hz, Transmitter and Pigtail Receiver, 4:4:4, PoC, HDR, HDCP 2.2, up to 230-ft. (70.1 m), TAA |
| Manufacturer | Tripplite Cables |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocols | HDMI |
| Features | 36-bit True Color support, 3D support, 4:4:4 chroma subsampling support, 4K resolution support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD support, HDR support, Power over cable (PoC), Zero transition delay |
| Form Factor | Wall Mountable |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Product Type | Video/audio extender |
| Interface Provided | 1 x audio / video (receiver) - 19 pin HDMI Type A male, 1 x network (receiver) - RJ-45 female, 1 x network (transmitter) - RJ-45 female, 2 x audio / video (transmitter) - 19 pin HDMI Type A female, 2 x line input/output (transmitter) - phone 3.5 mm female |
| KVP Max Resolution | 3840 x 2160 |
| Frequency | 50/60 hertz |
| Power Supplies Installed | 1 |
| Cables | 1 x power cable - 4.5 ft |
| Included Accessories | 4 power plug adapters |
| Color Category | Black |
| Compliant Standards | CCC, CEC, cUL, EDID compatible, FCC, GS, GSA, REACH, RoHS, TUV, UL |
| No | EPEAT Compliant |
| No | TAA Compliant |
| Yes | TCO Certified |
