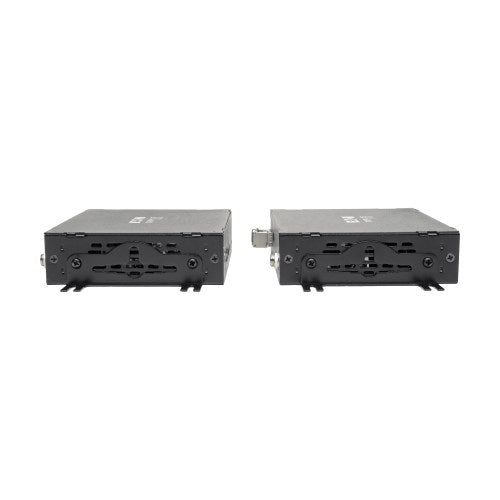

Tripp-Lite B127F-1A1-MMDDA | DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA

DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional AV cables allow. The B127F-1A1-MMDDA extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monit or up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling. Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color

The B127F-1A1-MMDDA supports Ultra HD 4K video resolutions up to 3840 x 216 at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It supports HDR (High Dyna mic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompr essed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DIP Switches Extend Your Choice of USB, IR or RS-232 Signals

The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the UB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time. Plug-and-Play Operation for Quick Setup and Immediate Use

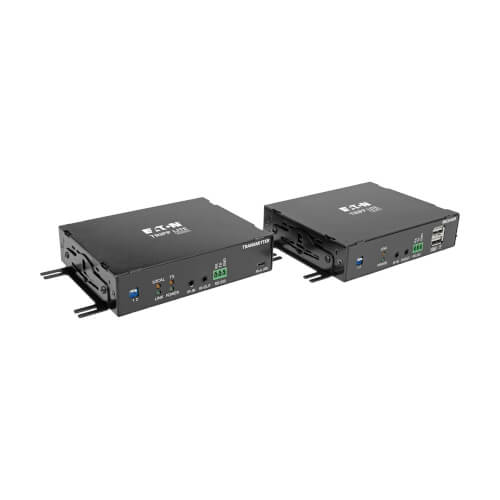

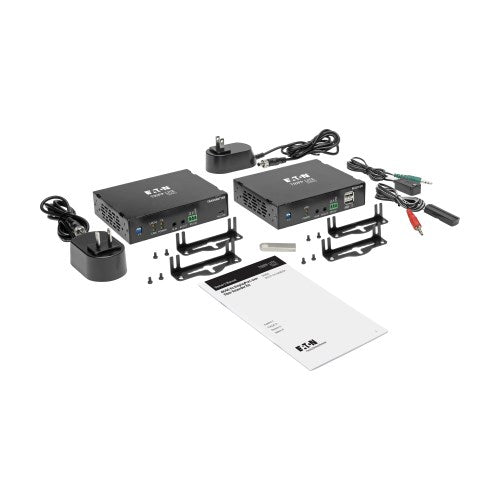

The included transmitter and receiver work right out of the box with no software required. Mounting ardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (N820-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the remote receiver. The local port allows connection of displays with lower resolutions, such as 720p and 1080p, without af fecting the 4K 60 Hz signal transmission to the receiver. TAA-Compliant for GSA Schedule Purchases
