Brand: Tripp-Lite
|
SKU:
565135
Tripp-Lite B130-101-U | VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, Up to 500 ft. (152 m), TAA
Regular price
$160.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B130-101-U | VGA over Cat5/6 Extender Kit, Transmitter/R...
Regular price
$160.53
Unit price
Description
Description

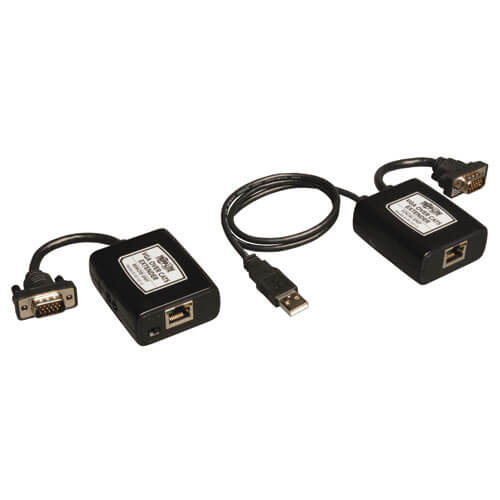

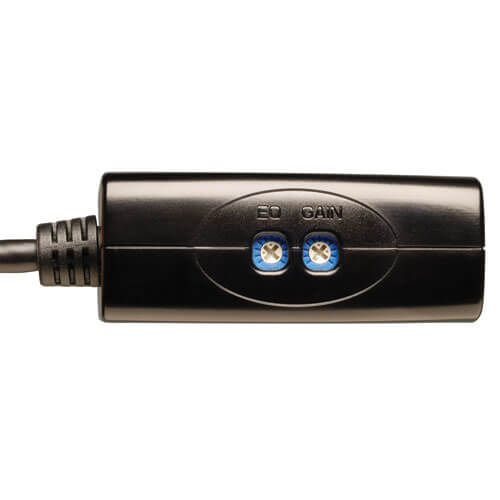

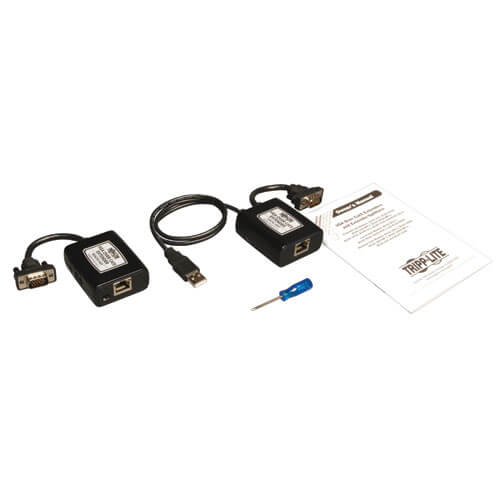

Tripp Lite's USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350-ft. (106.68 m), or a 1024 x 768 (60Hz) signal up to 500-ft. (152.4 m), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes Gain adjustment for brightness/darkness control, and Equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a Transmitter with VGA and USB (power) pigtails, and a Receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Extends a 1920 x 1440 (60Hz) signal up to 350-ft. (106.68 m), or a 1024 x 768 (60Hz) signal up to 500-ft. (152.4 m), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- USB-powered...no external AC power needed
- Built-in VGA dongles...no need for additional VGA cables
- Built-in Equalization and Gain controls for the sharpest images
- Uses readily available Cat5e or Cat6 solid conductor cable
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Driver Required | No |
|---|---|
| Built-In Equalizer | Yes |
Specifications
Specifications
Overview
| UPC Code | 37332166593 |
|---|---|
| Product Type | Extender Kit |
| Technology | VGA/SVGA; Cat5/5e; Cat6 |
Video
| Max Supported Video Resolution | 1920x1440 @ 60Hz |
|---|---|
| Max 720P Range (ft) | 350 |
| Max 1080P Range (ft) | 350 |
| Max 1280 x 720 (720p) Range (ft) | 350 |
| Max 1920 x 1080 (1080p) Range (ft) | 350 |
| Max 1920 x 1200 Range (ft) | 350 |
| Transmitter Video Input | VGA |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | VGA |
| Receiver - Number of Video Outputs | 1 |
| Range Extension using other Tripp Lite product | 1000ft @ 1024 x 768 (60Hz) 500ft @ 1920 x 1440 (60Hz) |
| Recommended Cabling | Solid Wire Cat6 Cables (Tripp Lite's N202-Series) |
| Other Tripp Lite product used to extend range | B132-110A |
Power
| Power Source | Transmitter end only (Included) |
|---|---|
| Power Source Type | USB |
User Interface, Alerts & Controls
| LED Indicators | TX & RX: Green = Power; Orange = Signal Transmission |
|---|
Physical
| Color | Black |
|---|---|
| Number of Displays | 1 |
| Form Factor/Mounting Options | Pigtail |
Communications
| Max 1024 x 768 Range (ft) | 500 |
|---|---|
| Max 480P Range (ft) | 500 |
| Max 1440 x 900 Range (ft) | 350 |
| Max 1080i Range (ft) | 350 |
| Max 480i Range (ft) | 500 |
| Max 640 x 480 Range (ft) | 500 |
| Max 800 x 600 Range (ft) | 500 |
| Max 1600 x 1200 Range (ft) | 350 |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | HD15 (MALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, CE, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
