Brand: Tripp-Lite
|
SKU:
641797

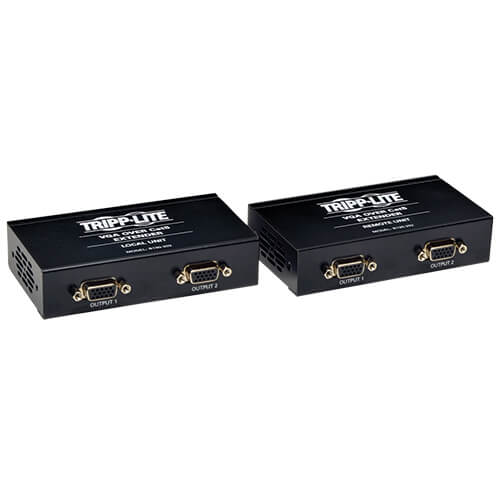

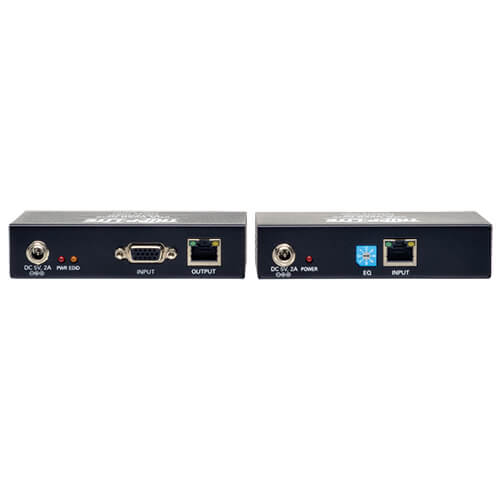

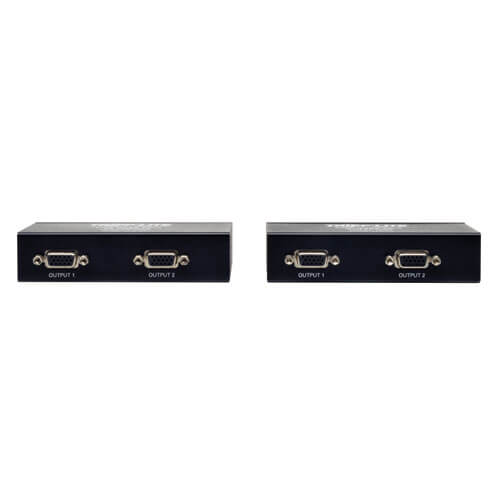

Tripp-Lite B130-202 | 1 x 4 VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, 2 Local/2 Remote Displays, Up to 500 ft. (152 m)
Regular price
$167.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B130-202 | 1 x 4 VGA over Cat5/6 Extender Kit, Transmitt...
Regular price
$167.43
Unit price
Description
Description
Tripp-Lite B130-202 | 1 x 4 VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, 2 Local/2 Remote Displays, Up to 500 ft. (152 m)
Features
- Connect up to 4 VGA monitors - 2 local and 2 remote
- Extends a 1440 x 900 @ 60Hz signal up to 165 ft. (50 m) from the source
- Extends a 1024 x 768 @ 60Hz signal up to 500 ft. (150 m) from the source
- EDID copy feature ensures optimal display compatibility
- Built-in equalization control allows for adjustment of the video image
- All operating systems supported
- Plug-and-play; no software or drivers are required
- HDCP compliant
Features & Specifications
| Driver Required | No |
|---|---|
| Built-In Equalizer | Yes |
Specifications
Specifications
Overview
| UPC Code | 37332182630 |
|---|---|
| Product Type | Extender Kit |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft. |
Video
| Max Supported Video Resolution | 1440x900 @ 60Hz |
|---|---|
| Max 720P Range (ft) | 165 |
| Max 1280 x 720 (720p) Range (ft) | 165 |
| Transmitter Video Input | VGA |
| Transmitter - Number of Video Outputs | 2 |
| Transmitter - Local Display Output | VGA |
| Receiver/Transceiver Video Output | VGA |
| Receiver - Number of Video Outputs | 2 |
| Range Extension using other Tripp Lite product | 1000ft @ 1024 x 768 (60Hz) 500ft @ 1920 x 1440 (60Hz) |
| Recommended Cabling | Solid Wire Cat6 Cables (Tripp Lite's N202-Series) |
| Other Tripp Lite product used to extend range | B132-110A |
| HDR Support | No |
| Maximum Signal Range (ft) | 500 |
Power
| Power Source | Transmitter and Receiver (Included) |
|---|---|
| Power Source Type | AC Adapter |
User Interface, Alerts & Controls
| LED Indicators | TX & RX: Red (Power); EDID (Orange); RJ45: Green (Connection); Orange (Data Transmission) |
|---|
Physical
| Color | Black |
|---|---|
| Included Mounting Accessories | Wallmount |
| Number of Displays | 4 |
Communications
| Max 1024 x 768 Range (ft) | 500 |
|---|---|
| Max 480P Range (ft) | 500 |
| Max 1440 x 900 Range (ft) | 165 |
| Max 480i Range (ft) | 500 |
| Max 640 x 480 Range (ft) | 500 |
| Max 800 x 600 Range (ft) | 500 |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| USB Extension Support | No |
Connections
| Ports | 2 |
|---|---|
| Side A - Connector 1 | (3) HD15 (FEMALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
