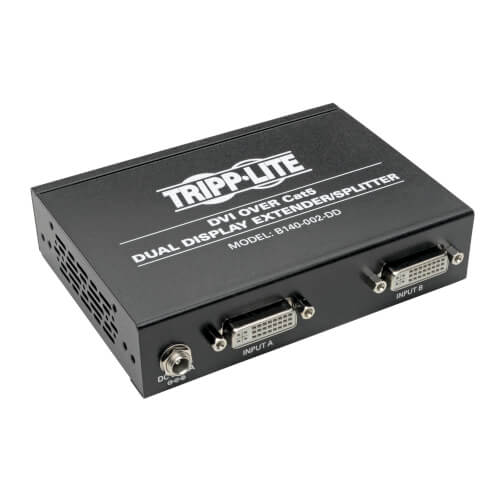

Tripp-Lite B140-002-DD | 2-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, Dual-Display DVI-D, 200 ft. (60 m), TAA

Features

• Transmits a DVI-D Single-Link signal from a set of Dual DVI inputs to two sets of Dual Displays
• A B140-Series remote receiver is needed at each monitor
• For longer distances: Use a B140-1A0 active receiver to extend a 1920 x 1200 @ 60Hz signal up to 150-ft. (45.72 m) from the transmitter (or a 1024 x 768 @ 60Hz signal up to 200-ft. (60.96 m) from the transmitter)
• For shorter distances: Use a B140-1P0 passive receiver to extend a 1920 x 1200 @ 60Hz signal up to 50-ft. (15.24 m) from the transmitter (or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m) from the transmitter)
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series to achieve maximum distance and resolution
• Further expand the range and number of monitors by adding B140-110 remote repeater units
• Add up to three repeaters on each of the B140-002-DD channels, for a total of 4 displays per channel (An active receiver should be the last unit in a channel)
• A 1920 x 1200 @ 60Hz signal can be extended up to 125-ft. (38.1 m) for each repeater added into a channel (or up to 175-ft. (53.34 m) for a 1024 x 768 @ 60Hz signal)
• DVI 1.0 compliant
• HDCP compatible

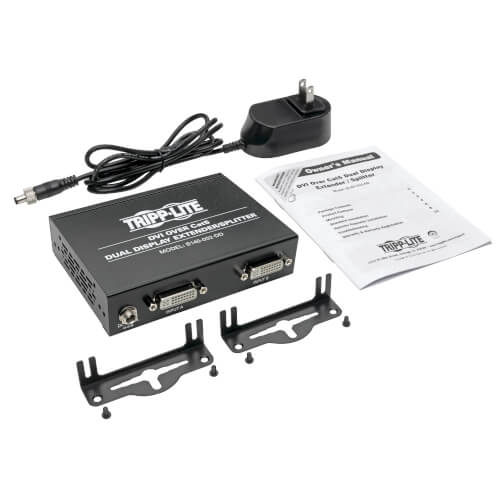

• Mounting hardware included that allows the unit to be wall-mounted, rackmounted, or pole mounted
• Plug and play; no software or drivers required
• Compatible with all operating systems
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features & Specifications
