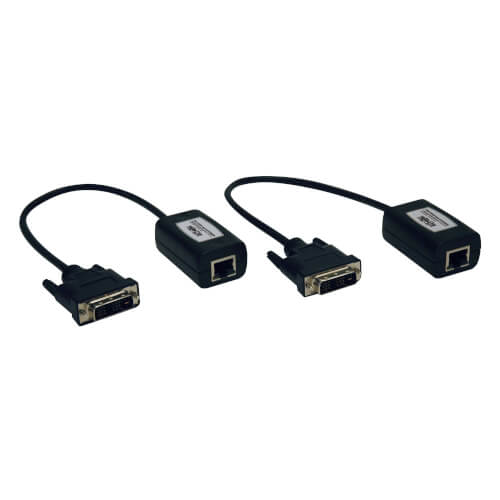

Tripp-Lite B140-101 | DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA
Regular price
$126.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B140-101 | DVI over Cat5/6 Passive Extender Kit, Box-Sty...
Regular price
$126.66
Unit price
Description
Description
The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50-ft. (15.24 m) from the source,, or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)
Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50-ft. (15.24 m) from the source,, or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)
Features
- Extender kit comes with transmitter and receiver units
- Transmit a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 50-ft. (15.24 m), or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no external power, software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Driver Required | No |
|---|---|
| Built-In Equalizer | No |
Specifications
Specifications
Overview
| UPC Code | 37332154088 |
|---|---|
| Product Type | Extender Kit |
| Technology | DVI; Cat5/5e; Cat6 |
Video
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
|---|---|
| Max 720P Range (ft) | 100 |
| Max 1080P Range (ft) | 50 |
| Max 1280 x 720 (720p) Range (ft) | 50 |
| Max 1920 x 1080 (1080p) Range (ft) | 50 |
| Transmitter Video Input | DVI-D (Single Link) |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | DVI-D (Single Link) |
| Receiver - Number of Video Outputs | 1 |
| Range Extension using other Tripp Lite product | 175ft @ 1024 x 768 XGA 125ft @ 1920 x 1080 UXGA |
| Recommended Cabling | N202-Series Cat6 Patch Cable |
| Other Tripp Lite product used to extend range | B140-110 |
| HDR Support | No |
Power
| Power Over Cable (PoC) Support | No |
|---|
User Interface, Alerts & Controls
| LED Indicators | TX & RX: Power (Green); Activity (Orange) |
|---|
Physical
| Color | Black |
|---|---|
| Number of Displays | 1 |
| Form Factor/Mounting Options | Pigtail |
Communications
| Max 1024 x 768 Range (ft) | 100 |
|---|---|
| Max 480P Range (ft) | 100 |
| Max 1440 x 900 Range (ft) | 100 |
| Max 1080i Range (ft) | 50 |
| Max 480i Range (ft) | 100 |
| Max 640 x 480 Range (ft) | 100 |
| Max 800 x 600 Range (ft) | 100 |
| Max 1600 x 1200 Range (ft) | 100 |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | DVI-D SINGLE LINK (MALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
