Brand: Tripp-Lite
|
SKU:
565166

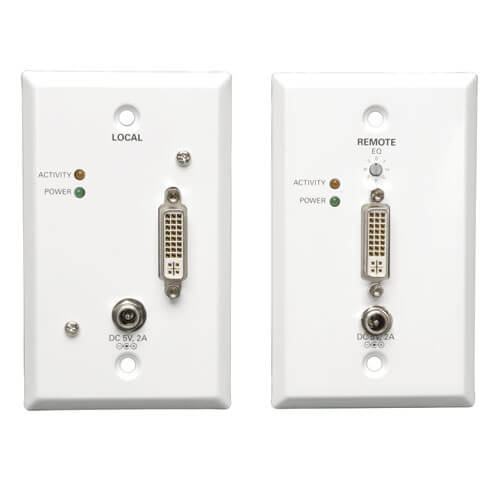

Tripp-Lite B140-1A1-WP | DVI over Cat5/Cat6 Active Extender Kit, Wallplate Transmitter and Receiver, 1920x1080 60 Hz, Up to 200 ft. (60 m), TAA
Regular price
$206.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B140-1A1-WP | DVI over Cat5/Cat6 Active Extender Kit, Wa...
Regular price
$206.46
Unit price
Description
Description
Extend a DVI Digital Single-Link signal up to 200ft @ 1024 x 768 or 150ft @ 1920 x 1200 over inexpensive Cat5e / Cat6 cabling.
Features

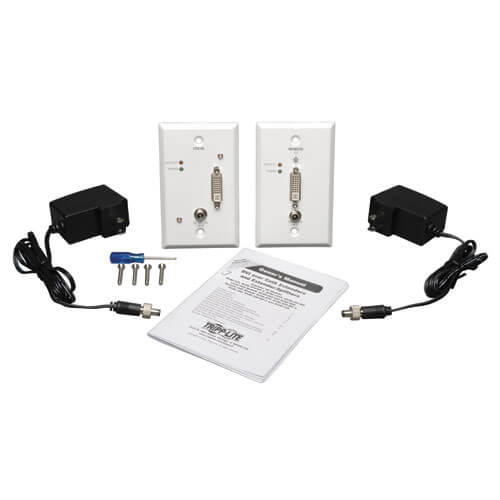

- 2 piece kit includes both local transmitter and remote receiver wallplates
- Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1200 (60Hz), when using 24Awg, solid wire Cat56 cabling. (Tripp Lite N202 Series Patch Cables)
- Built in equalization control for the sharp display quality
- Easy RJ45 patch cable connections
- No software or drivers required
- HDCP and DDC compatible
- Compatible with all operating systems
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Driver Required | No |
|---|---|
| Built-In Equalizer | Yes |
Specifications
Specifications
Overview
| UPC Code | 37332168092 |
|---|---|
| Product Type | Extender Kit |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A |
Video
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
|---|---|
| Max 720P Range (ft) | 200 |
| Max 1080P Range (ft) | 150 |
| Max 1280 x 720 (720p) Range (ft) | 150 |
| Max 1920 x 1080 (1080p) Range (ft) | 150 |
| Transmitter Video Input | DVI-I |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | DVI-I |
| Receiver - Number of Video Outputs | 1 |
| Range Extension using other Tripp Lite product | 175ft @ 1024 x 768 XGA 125ft @ 1920 x 1080 UXGA |
| Recommended Cabling | N202-Series Cat6 Patch Cable |
| Other Tripp Lite product used to extend range | B140-110 |
| HDR Support | No |
Power
| Power Source | Transmitter and Receiver (Included) |
|---|---|
| Power Source Type | AC Adapter |
User Interface, Alerts & Controls
| LED Indicators | TX & RX: Power (Green); Activity (Orange) |
|---|
Physical
| Color | White |
|---|---|
| Number of Displays | 1 |
| Form Factor/Mounting Options | Wallplate |
Communications
| Max 1024 x 768 Range (ft) | 200 |
|---|---|
| Max 480P Range (ft) | 200 |
| Max 1440 x 900 Range (ft) | 200 |
| Max 1080i Range (ft) | 150 |
| Max 480i Range (ft) | 200 |
| Max 640 x 480 Range (ft) | 200 |
| Max 800 x 600 Range (ft) | 200 |
| Max 1600 x 1200 Range (ft) | 200 |
| EDID Compatible | Yes |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |

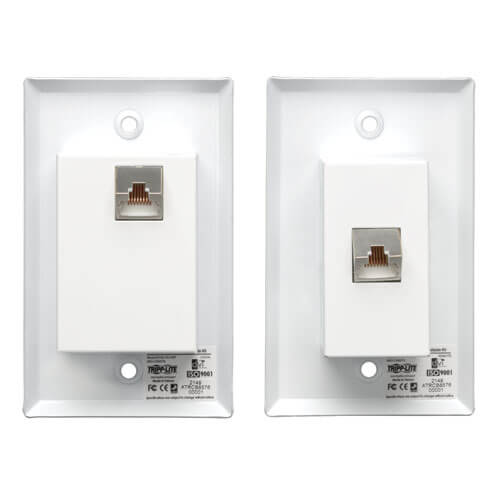

| Side A - Connector 2 | RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
