Tripp-Lite B140-1P1-WP-1 | DVI over Cat5/Cat6 Passive Extender Wall...
Description
Description
Do you need to locate digital display in a conference room, auditorium or classroom a long distance froma DVI source and still want to get an HD quality video experience? Then this DVI over Cat5/6 PassiveExtender Wall Plate Kit is the solution for you. Using a simple-to-install kit, containing local transmitter andremote receiver units, it can flawlessly transmit a 1920 x 1080 at 60 Hz DVI Single-Link signal up to 50feet (15.2 meters) or a 1024 x 768 at 60 Hz signal up to 100 feet with single 24 AWG solid wire Cat5e/6Ethernet cable (N202-Series). The wall plate mounting configuration is perfect for permanent installations.For quick and convenient wiring, the wallplate's RJ45 female jacks are rear-facing and fit standard Cat5/6connections. It's compatible with all operating systems, and requires no external power, software ordrivers. It's compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Tripp-Lite - B140-1P1-WP-1 - Features
- Maximum Extension Distance: Extends a 1920 x 1080 at 60 Hz signal up to 50-ft. (15.2 m), or a 1024 x 768 at 60 Hz signal up to 100-ft. (30.5 m)
- Local (transmitter) and remote (receiver) units are mounted in a wallplate configuration. (Cabling is sold separately)
- Front-facing DVI port/display connectors; rear-facing RJ45 Female jacks for quick and easy connection to standard Cat5/6 cabling. (110 punchdown connections are not required.)
- 24 AWG Solid Wire Cat5e/6 cabling for maximum distance and resolution (N202 Series)
- HDCP; all operating systems
- Plug and play, with no external power, software or drivers required
Specifications
Specifications
Tripp-Lite - B140-1P1-WP-1 - Package Contents

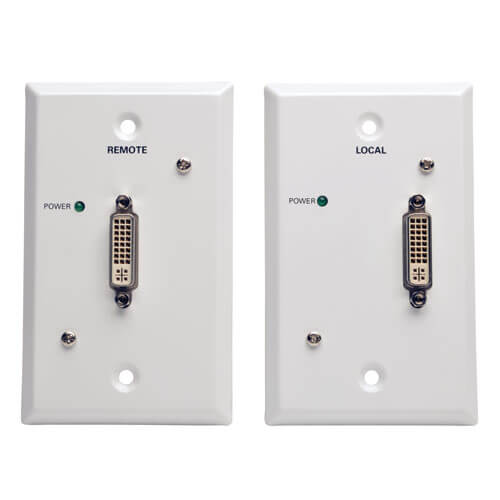

- B140-1P1-WP-1 local wallplate
- B140-1P1-WP-1 remote wallplate
- Wallplate screws
- Owner’s manual
Tripp-Lite - B140-1P1-WP-1 - Specifications
| UPC Code | 037332163028 |
|---|---|
| Product Type | Splitter; Extender Kit |
| Technology | DVI; Cat5/5e; Cat6 |
| Max 720P Range (ft) | 100 |
| Max 1080P Range (ft) | 50 |
| Power Over Cable (PoC) Support | No |
| Number of Ports | 1 |
| Side A - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
| Max 1024 x 768 Range (ft) | 100 |
| Max 480P Range (ft) | 100 |
| Max 1440 x 900 Range (ft) | 100 |
| Max 1080i Range (ft) | 50 |
