Brand: Tripp-Lite
|
SKU:
812294
Tripp-Lite B155-002-VGA | 2-Port Mini DisplayPort to VGA Hub, DP1.2, TAA
Regular price
$72.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B155-002-VGA | 2-Port Mini DisplayPort to VGA Hub, DP1.2...
Regular price
$72.38
Unit price
Description
Description

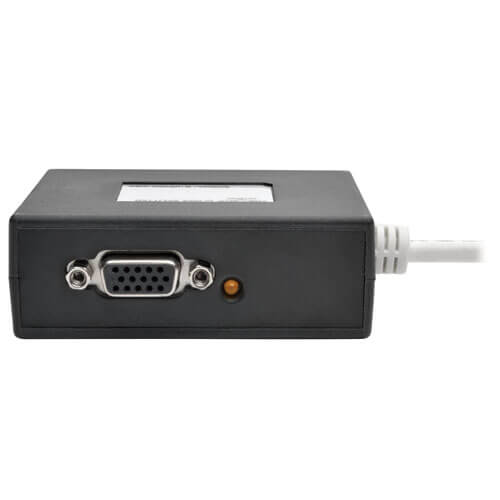

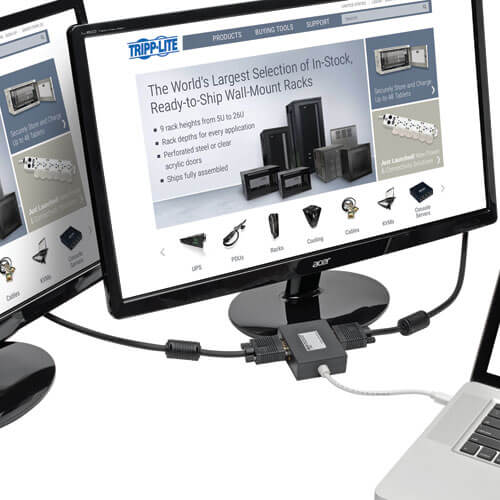

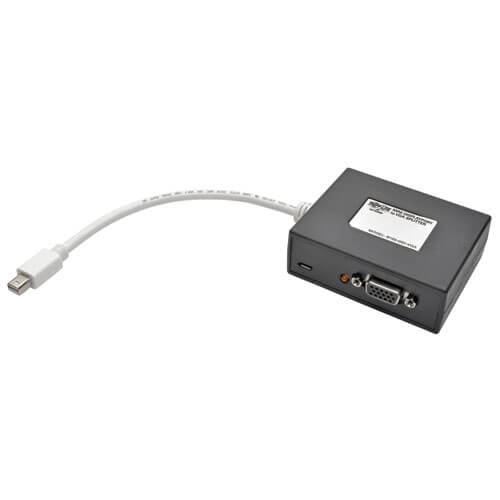

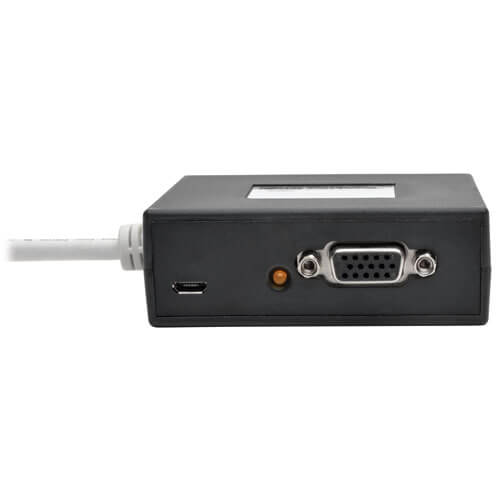

The B155-002-VGA 2-Port Mini DisplayPort to VGA Splitter converts and splits a Mini DisplayPort video signal for display on two VGA-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in Mini DisplayPort cable that connects to the source. It lets you use your existing VGA displays instead of buying new Mini DisplayPort monitors or docking stations.
The B155-002-VGA supports video resolutions up to 1080p @ 60 Hz (1920 x 1080), as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.
Features
- Converts and Splits Mini DisplayPort Signal to 2 VGA Displays Simultaneously
- Ideal for offices, conference rooms, trade shows and classrooms
- Built-in Mini DisplayPort cable connects to source
- Included USB Micro-B cable supplies power to splitter
- Save money on new Mini DisplayPort displays or docking stations
- Top-Shelf Performance
- Supports video resolutions up to 1080p @ 60 Hz (1920 x 1080)
- Complies with HDCP, EDID and DDC
- LEDs indicate whether splitter is powered on and transmitting signal to connected displays
- Easy to Use Almost Anywhere
- Works with all operating systems
- Plug and play—no software, drivers or external power supply required
- Compact unit fits easily in backpack or computer bag
Features & Specifications
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
Special Features
| MST Support | No |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332191489 |
|---|---|
| Technology | DisplayPort; VGA/SVGA |
Video
| Max Supported Video Resolution | 1080p @ 60 Hz (1920 x 1080) |
|---|---|
| Max Supported Color Depth | 24-bit True Color |
| 3D Video Supported | Yes |
Audio
| Audio Specification | 2.0-channel surround sound audio |
|---|
User Interface, Alerts & Controls
| LED Indicators | (x2) Orange (Monitor Signal) |
|---|
Physical
| Color | Black |
|---|---|
| Material of Construction | Polycarbonate |
| Rackmountable | No |
Communications
| EDID Compatible | Yes |
|---|
Connections
| Ports | 2 |
|---|---|
| Side A - Connector 1 | MINI DISPLAYPORT (MALE) |
| Side A - Connector 2 | MICRO-USB B (FEMALE) |
Standards & Compliance
| Certifications | CE, FCC, RoHS, and REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
