Brand: Tripp-Lite
|
SKU:
931566

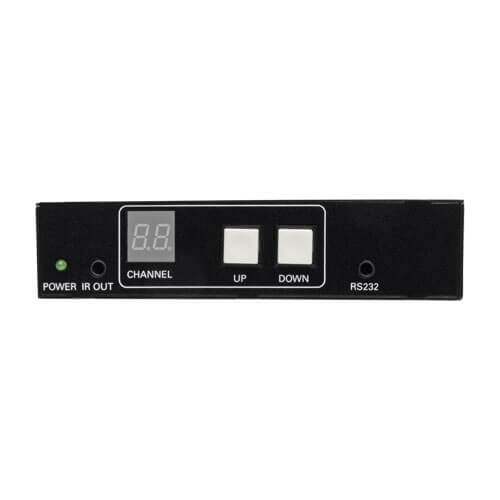

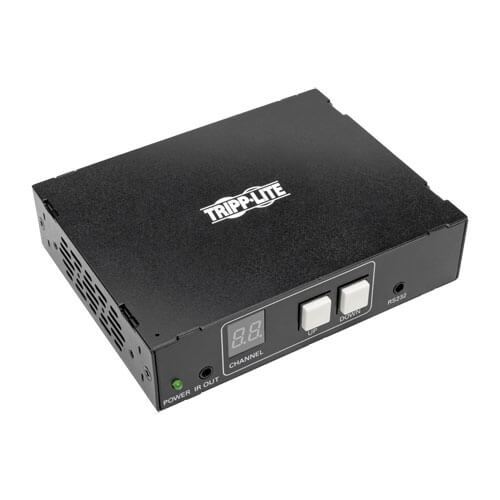

Tripp-Lite B160-001-CSI | Component Video (RCA) over IP Extender Transmitter over Cat5/Cat6, RS-232 and IR Control, 1080i, 328 ft. (100 m), TAA
Regular price
$258.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B160-001-CSI | Component Video (RCA) over IP Extender Tr...
Regular price
$258.07
Unit price
Description
Description
Converts component video and stereo audio to an IP-based signal that is transmitted point-to-point to a receiver 328 ft. away via Cat5e/6 cable or through a dedicated Ethernet network switch.
Features
- Distributes Component Video, Stereo Audio, Serial and IR Control Signals over Cat5/6 Cabling
- Converts audio and video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
- Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
- HDMI output for connecting a local display
- Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
- Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
- IGMP-enabled switches allow centralized control over which sources show on which displays
- Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
- Enhanced Technical Features
- Supports video resolutions up to 1080i
- Uses H.264 video compression standard
- Transmits on 20–60 kHz IR frequency
- Sends IR control signals that control a source from a remote display
- Supports RS-232 serial baud rates up to 57600 Bps
- HDCP and 3D compatible
- Plug-and-Play Functionality
- Plug and play—no software or drivers required

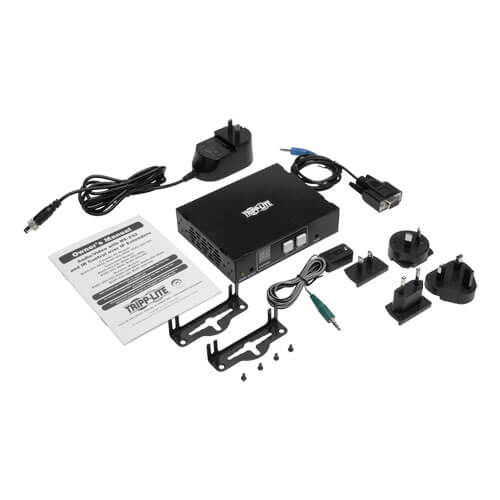

- Hardware included for mounting on wall, rack or pole
- Compatible with all Tripp Lite B160-Series A/V over IP receivers
- TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Driver Required | No |
|---|---|
| Recommended Category Cable | N202-Series Cat6 Patch Cable |
| Built-In Equalizer | No |
Specifications
Specifications
Overview
| UPC Code | 37332196705 |
|---|---|
| Product Type | Transceiver |
| Technology | Component; IR; Serial (RS232); A/V over IP; Cat5/5e; Cat6 |
Video
| Max Supported Video Resolution | 1920x1080 (1080i @ 60Hz) |
|---|---|
| Max 1280 x 720 (720p) Range (ft) | 328 |
| Transmitter Video Input | Component (RCA) |
| Transmitter - Number of Video Outputs | 1 |
| Transmitter - Local Display Output | HDMI |
| Range Extension using other Tripp Lite product | 328ft |
| Recommended Cabling | N202-Series Cat6 Patch Cable |
| Other Tripp Lite product used to extend range | network switch |
| HDR Support | No |
| 3D Video Supported | Yes |
| Maximum Signal Range (ft) | 328 |
Audio
| Audio Input | RCA (x2) Stereo |
|---|---|
| Audio Specification | Stereo Audio |
Power
| Power Source | Unit (Included) |
|---|---|
| Power Source Type | AC Adapter |
| AC Plug Type | NEMA 1-15P; BS1363; CEE 7/16 Schuko; AS/NZS 3112 |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 1.0A |
| External Power Supply Output Specs (V / A) | 5V/2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.4 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 7.5mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | BSMI; CB; CE; FCC; GS; PSE; RCM; UL; cUL |
| Power Over Cable (PoC) Support | No |
User Interface, Alerts & Controls
| LED Indicators | RJ45 Output (Green / Power, Orange / Signal), Channel Signal (Red), Power (Green) |
|---|
Environmental
| Operating Temperature Range | 14 to 167 F (-10 to 75 C) |
|---|---|
| Storage Temperature Range | -4 to 176 F (-20 to 80 C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
| BTUs | 24.6 BTU/Hr |
| Power Consumption (Watts) | 7.2 |
Communications
| Signal Range (ft.) | 328 |
|---|---|
| IR Remote Extension Support | Yes |
| RS-232 Serial Extension Support | Yes |

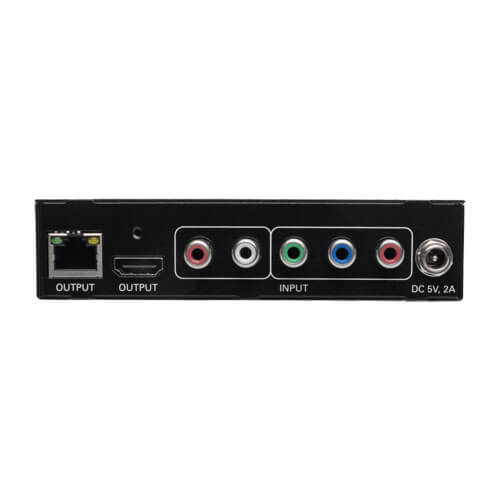

Connections
| Ports | 9 |
|---|---|
| Side A - Connector 1 | (5) RCA (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE); RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
