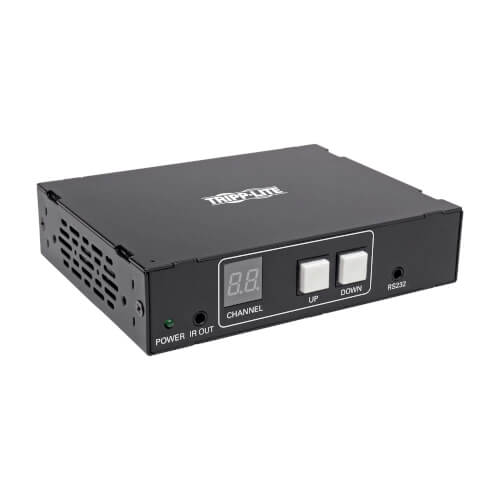

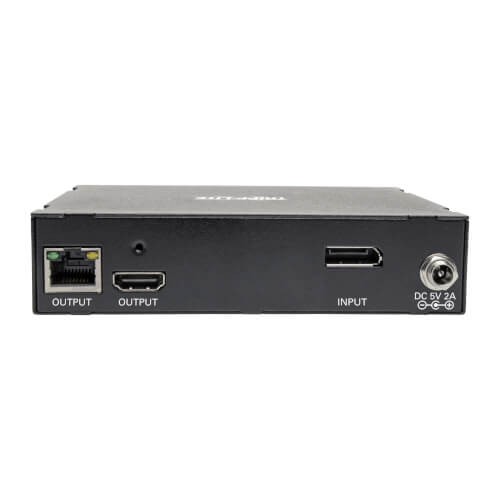

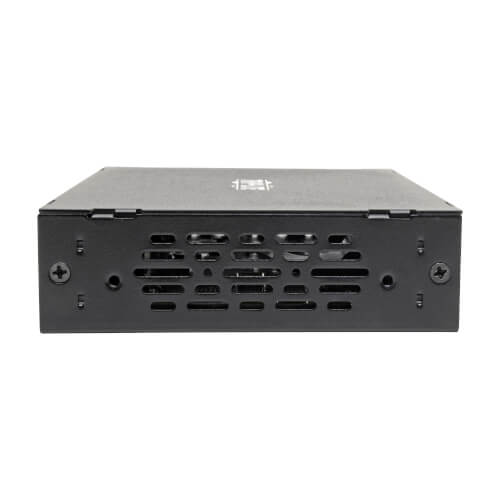

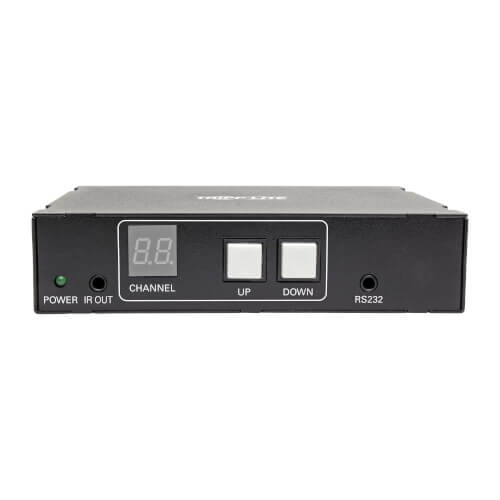

Tripp-Lite B160-001-DPSI | DisplayPort over IP Extender Transmitter over Cat5/Cat6, RS-232 Serial and IR Control, 1920 x 1080, 328 ft. (100 m), TAA

Features

• Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling
• Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
• Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
• HDMI output for connecting a local display
• Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
• Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
• IGMP-enabled switches allow centralized control over which sources show on which displays
• Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
• Enhanced Technical Features
• Supports video resolutions up to 1920 x 1080, including 1080p (limited to receiver’s max resolution)
• Uses H.264 video compression standard
• Transmits on 20–60 kHz IR frequency
• Extends IR control signals that control a source from a remote display
• Supports RS-232 serial baud rates up to 57600 Bps
• HDCP and 3D compatible when used with a DisplayPort or HDMI receiver (not compatible with VGA receiver)
• Plug-and-Play Functionality
• No software or drivers required
• Hardware included for mounting on wall, rack or pole
• Compatible with all Tripp Lite B160-Series A/V over IP receivers
• TAA-Compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
