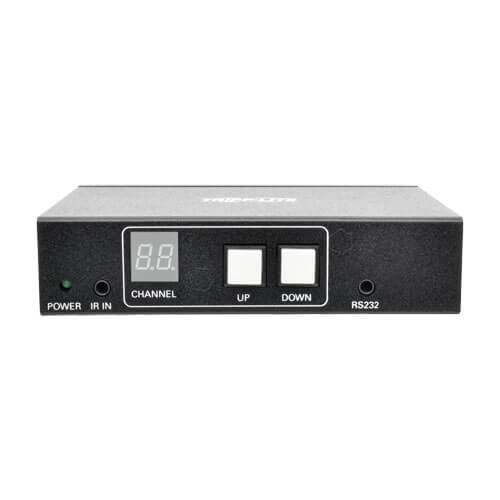

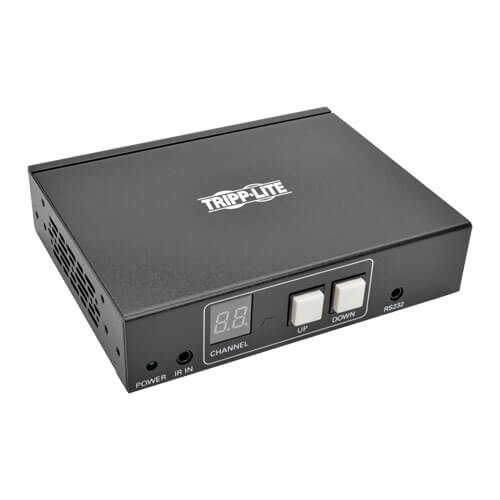

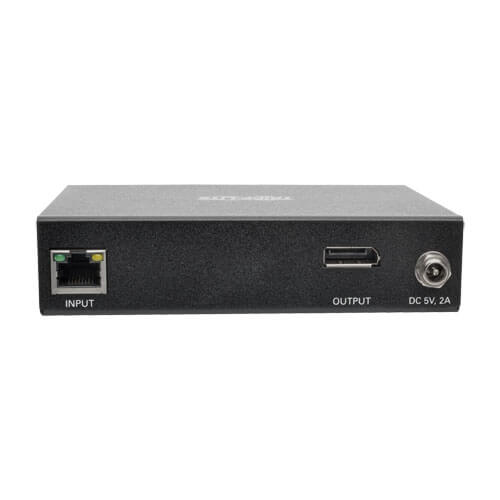

Tripp-Lite B160-100-DPSI | DisplayPort over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

Features

• DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling
• Receives IP-based audio/video transmitted point-to-point from a source 328 ft. away
• Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
• Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
• Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
• IGMP-enabled switches allow centralized control over which sources show on which displays
• Displays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitors
• Enhanced Technical Features
• Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Uses H.264 video compression standard
• Transmits on 20–60 kHz IR frequency
• Extends IR control signals that control a source from a remote display
• Supports RS-232 serial baud rates up to 57600 Bps
• HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter
• Plug-and-Play Functionality
• No software or drivers required

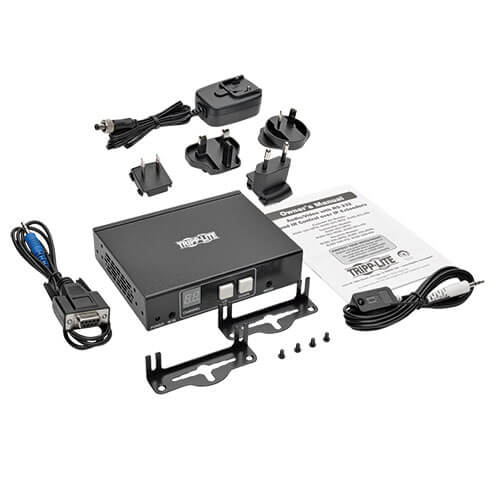

• Hardware included for mounting on wall, rack or pole
• Compatible with all Tripp Lite B160-Series A/V over IP transmitters
• TAA-Compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
