Brand: Tripp-Lite | SKU: 10587055

Tripp-Lite B203-101-IND | 1-Port Industrial USB over CAT 6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 150 feet

Regular price $291.16
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Tripp-Lite B203-101-IND | 1-Port Industrial USB over CAT 6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 150 feet

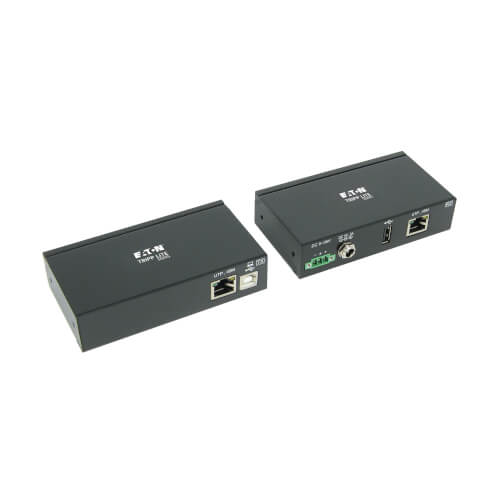

This plug-and-play extender kit with heavy-duty all-metal housings is ideal for connecting your office computer's USB-A port to a printer, 1080p webcam, external hard drive or other USB device located up to 150-ft. (45.7 m) (45 meters) away. The B203-101-IND includes a local transmitter and a remote receiver that extends USB 2.0 signals over user-supplied Cat5/6 cabling (such as N202-Series Cat6 Ethernet cables).
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This extender kit provides ESD protection to ±15 kV, reducing potential static damage to your connected USB peripherals. The durable metal transmitter and receiver units withstand harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
By extending the USB connection beyond the standard 16-foot distance limitation to 150-ft. (45.7 m), the B203-101-IND provides workstation flexibility to place your computer and the USB device where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.

Tripp-Lite - B203-101-IND - Features

  • Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
  • Power over Cable (PoC) provides power to the transmitter via Cat5/6 cable
  • ESD protection to ±15 kV cuts potential static damage to your connected peripherals
  • Industrial-grade metal housings withstand harsh warehouse and factory environments
  • Compatible with all major operating systems, including Windows, Mac OS and Chrome

Specifications

Tripp-Lite - B203-101-IND - Specifications

UPC Code37332256072
Product Length (in.)4.528
Product Length (cm.)11.501
Product Length (ft.)0.377
Product Length (m)0.115
Output Volt/Amp (from external power supply)5V/2A
Number of Ports4
Side A - Connector 1USB B (FEMALE)
Side A - Connector 2RJ45 (FEMALE)
Side B - Connector 1USB A (FEMALE)
Side B - Connector 1USB A (FEMALE)
Connector PlatingNickel
ColorBlack
Material of ConstructionMetal
Receiver Unit Dimensions (hwd / cm.)11.501 x 6.240 x 2.700
Receiver Unit Weight (lbs.)1
Unit Packaging TypeBox
Unit Weight (kg)0.45
Operating Temperature Range32° to 122°F (0° to 50°C)
Operating Humidity Range0 - 85% RH, NON-CONDENSING
