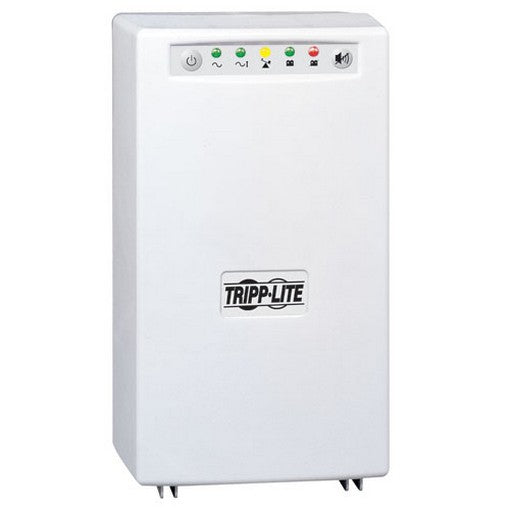

Tripp-Lite BCPRO1400 BC Pro 1400VA Tower Standby 120V UPS with USB Port

Tripp Lite's BCPRO1400 standby UPS offers AC surge suppression and long lasting battery support for desktop PCs, network workstations and a wide variety of consumer and professional electronics. Uninterruptible Power Supply / UPS circuits switch to battery backup mode within milliseconds to keep connected equipment running without interruption or data loss during power failures, brownouts and overvoltages. AC surge suppression prevents connected equipment damage. USB communications port supports full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.

Features

BCPRO1400 tower 120V standby UPS offers AC power protection from blackouts, brownouts, overvoltages and transient surges

1400VA / 940 watt UPS output capacity

Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts, brownouts and overvoltages to prevent data loss and system downtime for connected equipment

Built-in USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com

8 minutes runtime at 100% load (940 watts), 24 minutes runtime at 50% load (470 watts)

155 minutes runtime for a desktop computer system consuming 80 watts continuous

6 built-in NEMA 5-15R UPS supported outlets

NEMA 5-15P input connection with 6ft / 1.8m line cord

Network grade AC surge and lightning protection is available from all outlets

96% line mode efficiency rating uses less energy and BTU emissions

Front panel LEDs indicate line / battery mode, low battery, replace battery status; Audible alarm with alarm cancel / self-test button

Hot swappable user battery replacement

Tower housing supports desk or floor placement

Specs

Manufacturer Tripp-Lite

Condition New

Output Volt Amp Capacity (VA) 1400

Output kVA capacity (kVA) 1.4

Output Watt Capacity (watts) 940

Nominal Output Voltage(s) Supported 115V; 120V

Frequency compatibility 60 Hz

Output voltage regulation (Battery mode) 115V (+/- 5%)

Built-in UPS output receptacles 6 5-15R outlet(s)

Output AC waveform (AC mode) Sine wave

Output AC waveform (battery mode) PWM sine wave

Rated input current (at maximum load) 9.2A

Nominal Input Voltage(s) Supported 120V AC

UPS input connection type 5-15P

Input circuit breaker 15A

UPS Input cord length (ft.) 6

UPS Input cord length (m) 1.8

Recommended Electrical Service 15A 120V

Input cord length (ft.) 6

Input cord length (m) 1.8

Full load runtime (minutes) 8 min. (940w)

Half load runtime (minutes) 24 min. (470w)

DC system voltage (VDC) 36

Battery recharge rate (included batteries) Less than 4 hours from 10% to 90%

Replacement battery cartridge (internal UPS battery replacement) RBC53

Battery Access Battery access door

Battery replacement description Hot-swappable, user replaceable batteries

UPS AC suppression joule rating 510

UPS AC suppression response time Instantaneous

EMI / RFI AC noise suppression Yes

AC suppression joule rating 510

AC suppression response time Instantaneous

UPS housing material Polycarbonate

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load) 133.2

Battery mode BTU / hr. (full load) 435.8
