Brand: Tripp-Lite
|
SKU:
812305

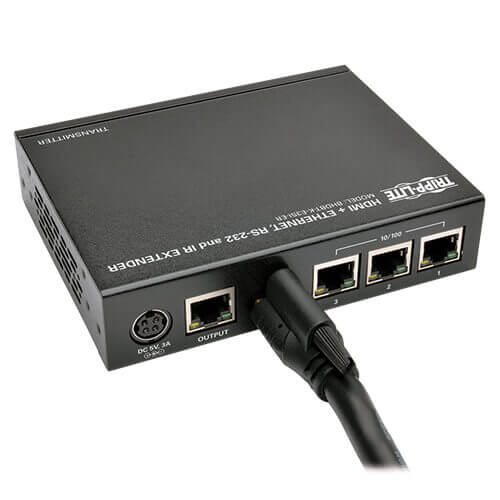

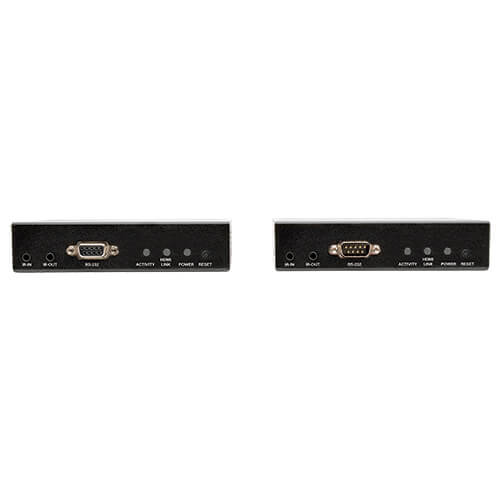

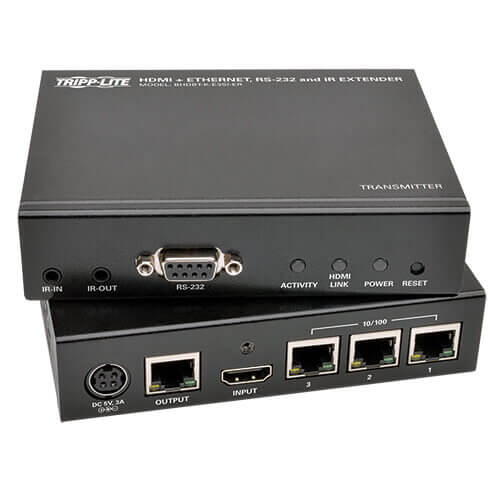

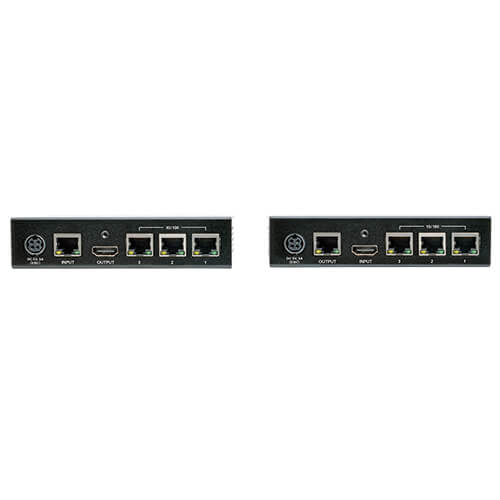

Tripp-Lite BHDBT-K-E3SI-ER | HDBaseT HDMI over Cat5e/6/6a Extender Kit with Ethernet, Serial and IR Control, 1080p, Up to 500 ft. (152 m), TAA
Regular price
$584.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite BHDBT-K-E3SI-ER | HDBaseT HDMI over Cat5e/6/6a Extender ...
Regular price
$584.87
Unit price
Description
Description
Extends HDMI video/audio, Ethernet, RS-232 serial and IR control signals over a single Cat5e/6/6a cable to a projector, monitor or television up to 500 ft. from the source.
Features
- Extends HDMI Video/Audio, Ethernet, RS-232 Serial and IR Control Signals Over a Single Cat5e/6/6a Cable
- Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
- Extends a high-definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 ft.
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 3D video, EDID and HDCP
- Reduces cable clutter and installation costs
- Built-In 10/100 Ethernet Ports on Transmitter and Receiver
- Allows connected devices to communicate with each other and access online content via LAN
- Controls Other Display Devices
- 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
- RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
- Easy to Set Up and Use
- Plug and play with no software or drivers to download and install
- Included mounting hardware for installing each unit on a wall, rack or pole
- Locking HDMI Ports on Transmitter and Receiver
- Prevent cables from coming loose or disconnected, ensuring an intact signal
- TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| HDCP Specification | 1.4 |
|---|---|
| Driver Required | No |
| 10/100 Ethernet Extension Support | Yes |
| Built-In Equalizer | No |
Specifications
Specifications
Overview
| UPC Code | 37332188175 |
|---|---|
| Product Type | Extender Kit |
| AC Adapter | Input: 4.5 ft 100-240V, 50/60Hz, 1A; Output: 5V, 3A |
Video
| Max Supported Video Resolution | 1920x1080 (1080p @ 60Hz) |
|---|---|
| Max 720P Range (ft) | 500 |
| Max 1080P Range (ft) | 500 |
| Max 1280 x 720 (720p) Range (ft) | 500 |
| Max 1920 x 1080 (1080p) Range (ft) | 500 |
| Transmitter Video Input | HDMI |
| Receiver/Transceiver Video Output | HDMI |
| Receiver - Number of Video Outputs | 1 |
| Recommended Cabling | HDMI |
| HDR Support | No |
| 3D Video Supported | Yes |
| Maximum Signal Range (ft) | 500 |
Audio
| Audio Input | HDMI |
|---|---|
| Audio Output | HDMI |
Power
| Power Source | Transmitter or Receiver (Included) |
|---|---|
| Power Source Type | AC Adapter |
| AC Plug Type | NEMA 1-15P |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 1.0A |
| External Power Supply Output Specs (V / A) | 5V/3A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.4 |
| External Power Supply Certifications | UL; cUL; PSE; FCC |
| Power Over Cable (PoC) Support | No |
User Interface, Alerts & Controls
| LED Indicators | RJ45 INPUT/OUTPUT (GREEN / POWER, ORANGE / LINK) RJ45 10/100 ETHERNET (GREEN / SIGNAL, FLASHING ORANGE / ACTIVITY) ACTIVITY (FLASHING ORANGE WHEN TX/RX POWERED AND CONNECTED) HDMI LINK (GREEN WHEN SIGNAL IS BEING SENT FROM SOURCE TO DISPLAY) POWER (GREEN) |
|---|
Environmental
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
|---|---|
| Storage Temperature Range | (-)40 TO 158 F (-40 TO 70 C) |
| Relative Humidity | 10% TO 90% RH, Non-Condensing |
| Operating Humidity Range | 10% TO 90% RH, Non-Condensing |
| Storage Humidity Range | 10% TO 90% RH, Non-Condensing |
Communications
| Max 1024 x 768 Range (ft) | 500 |
|---|---|
| Max 480P Range (ft) | 500 |
| Max 1440 x 900 Range (ft) | 500 |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | HDMI (FEMALE) |
| Side A - Connector 2 | (3) RJ45 (FEMALE) |
| Side A - Connector 3 | RJ45 (FEMALE) |
| Side A - Connector 4 | DB9 (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
