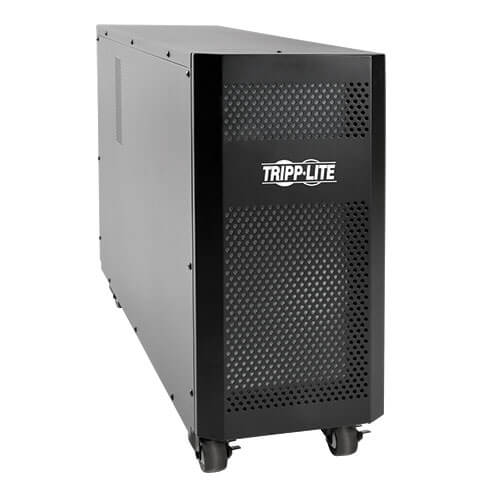

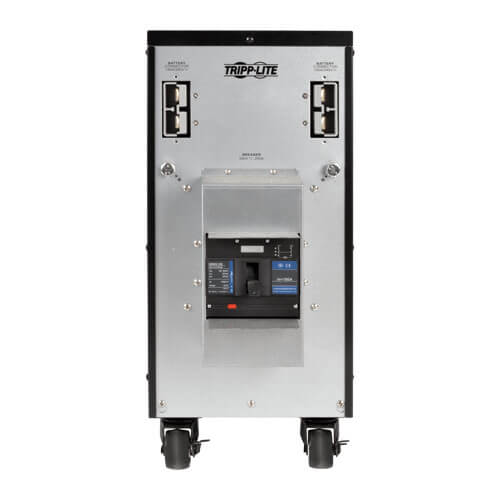

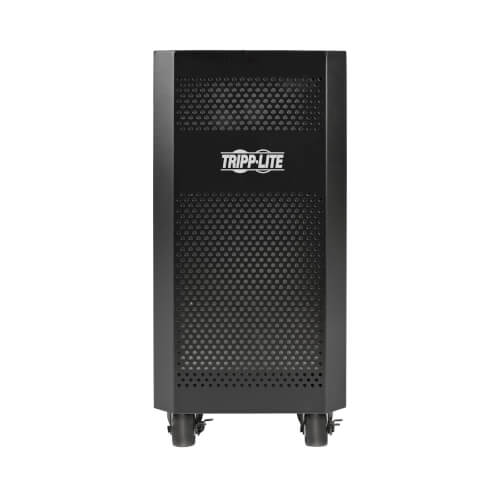

Tripp-Lite BP240V135 | External 240V Battery Pack for Select Tripp Lite 400V 3-Phase SmartOnline UPS Systems
Regular price
$6,658.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite BP240V135 | External 240V Battery Pack for Select Tripp ...
Regular price
$6,658.79
Unit price
Description
Description
The BP240V135 External Battery Pack extends the runtime of compatible Tripp Lite SmartOnline UPS systems recommending its use, including SVT10KX, SVT20KX and SVT30KX. It comes with heavy-gauge cabling and a high-current DC connector for safe, simple hardwired installation, as well as internal disconnect for battery isolation. A built-in circuit breaker protects your equipment from dangerous overcurrent or overloads. For even more battery runtime, you can daisy-chain multiple BP240V135 battery packs to the compatible UPS system. Tested to IEC 62040-1: 2008/A1: 2013 standards.
Features
- Extends Runtime of Select SmartOnline UPS Systems
- Connects to Tripp Lite’s SVT10KX, SVT20KX, SVT30KX and other 3-phase UPS systems recommending its use

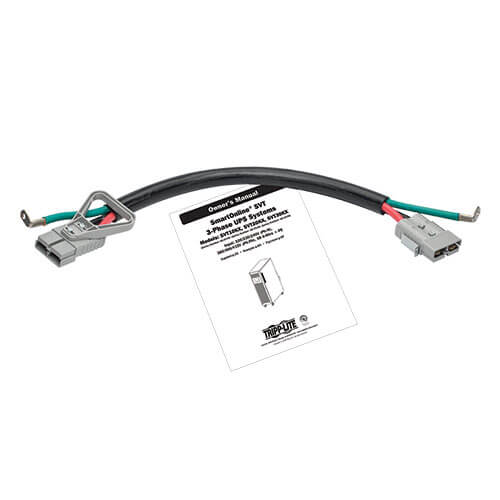

- Includes cable with high-current DC connector
- Internal DC disconnect for battery isolation
- Built-in circuit breaker
- Can be daisy-chained with multiple battery packs for extended-run operation
- Tested to IEC 62040-1: 2008/A1: 2013 standards
Specifications
Specifications
Overview
| UPC Code | 37332196569 |
|---|
Input
| Input Phase | 3-Phase |
|---|
Battery
| Expandable Battery Runtime | Multiple BP240V135 battery packs can be daisy-chained to the UPS for extended runtime |
|---|---|
| DC System Voltage (VDC) | 240VDC |
Physical
| External Battery Pack Form Factor | Tower |
|---|---|
| Material of Construction | Steel |
| Shipping Dimensions (hwd / in.) | 26.00 x 14.57 x 39.37 |
| Shipping Weight (lbs.) | 466 |
| Unit Dimensions (Height x Width x Depth, mm) | 580 x 250 x 826 |
| Unit Dimensions (hwd / in.) | 22.84 x 9.85 x 32.5 |
| Unit Weight (lbs.) | 342 |
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
