Brand: Tripp-Lite | SKU: 565184

Tripp-Lite BP24V36-2US | External 24V 2U Rack-Mount Battery Pack for select Tripp Lite UPS Systems (BP24V36-2US)

$971.65

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

BP24V36-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 24V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.

Compatible with these UPS Systems - SMART750RMXL2U, SU750RTXL2U, SU750RTXLCD2U, SU1000RTXL2UA, SU1000RTXLCD2U, SUINT1000RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.

Features

Offers extended-run UPS operation when used in conjunction with compatible 24V DC Tripp Lite UPS systems

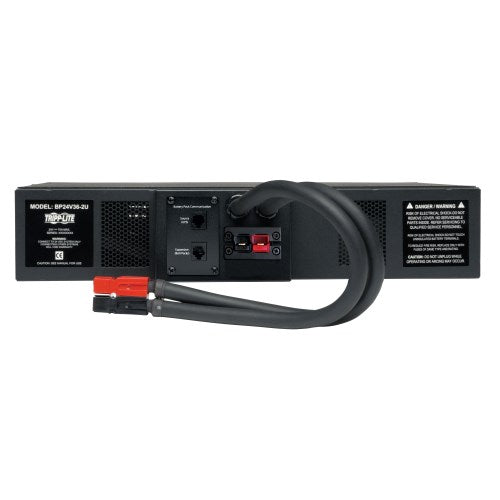

Includes heavy gauge cabling with high current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS
Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
Set of optional-use detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs
UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks

Specifications

Overview

UPC Code	37332178084

Input

Input Phase	Single-Phase

Battery

DC System Voltage (VDC)	24
UPS Connection	Attached cable with red/black 75 amp DC connector

Physical

External Battery Pack Form Factor	Rack
Installation Form Factor Notes	Upright vertical tower configuration is not recommended for this model
Installation Form Factors Supported with Included Accessories	4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Wallmount ( 2POSTRMKITWM )
Material of Construction	Steel
Minimum Required Rack Depth (inches)	16.8
Optional Mounting Accessory Notes	2POSTRMKITWM enables wall-mount and 2-post rackmount installation (Wallmount installation requires that the plastic front bezel of the battery pack face upward); 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only; without rear support
Rack Height	2U
Shipping Dimensions (hwd / in.)	9.00 x 22.90 x 21.10
Shipping Weight (lbs.)	72
Unit Dimensions (hwd / in.)	3.41 x 17.3 x 13.82
Unit Weight (lbs.)	59.4

Warranty

Product Warranty Period (U.S. & Canada)	2-year limited warranty

Documents and Downloads
