Brand: Tripp-Lite
|
SKU:
381520

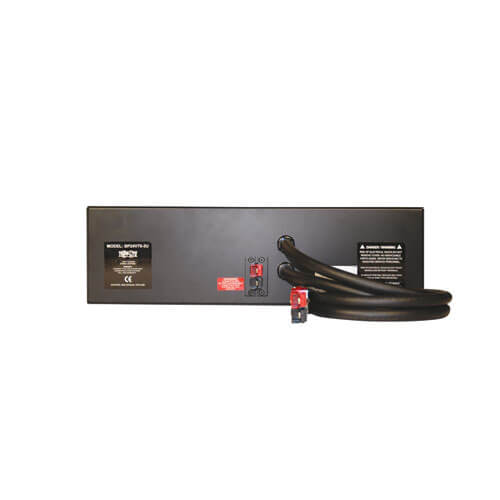

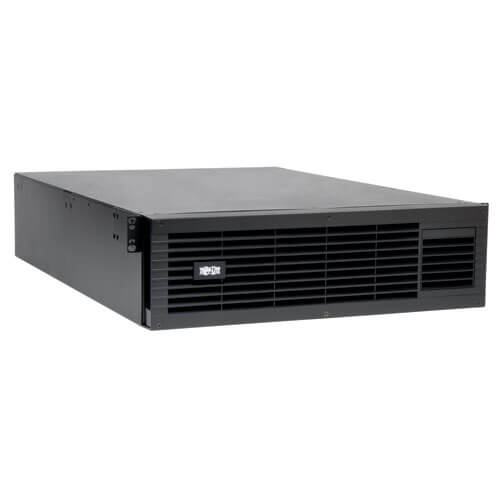

Tripp-Lite BP24V70-3U | External 24V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V70-3U)
Regular price
$2,652.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite BP24V70-3U | External 24V 3U Rack/Tower Battery Pack for...
Regular price
$2,652.45
Unit price
Description
Description
BP24V70-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 24V Tripp Lite rackmount and tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS. Included mounting accessories support 3U rackmount installation in 4 post racks. Options for 2 post center-mounting and upright tower installation available.
Compatible with these UPS Systems - OMNIVS1500XL, OMNIVSINT1500XL, SMART750RMXL2U, SMART750XLA, SU750RTXL2U, SU750RTXLCD2U, SU750XL, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU1000XLCD, SUINT1000RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.
Compatible with these UPS Systems - OMNIVS1500XL, OMNIVSINT1500XL, SMART750RMXL2U, SMART750XLA, SU750RTXL2U, SU750RTXLCD2U, SU750XL, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU1000XLCD, SUINT1000RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.
Features
- Offers extended-run UPS operation when used in conjunction with compatible 24V DC Tripp Lite UPS systems
- Includes heavy gauge cabling with high current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS
- Included mounting brackets support rackmount installation in 4 post racks using only 3 rack spaces (3U)
- 2POSTRMKITHD option supports balanced 2 point center-mounting in 2 post equipment racks
- 2-9USTAND option enables upright tower placement
Specifications
Specifications
Overview
| UPC Code | 37332123305 |
|---|
Input
| Input Phase | Single-Phase |
|---|
Battery
| DC System Voltage (VDC) | 24 |
|---|---|
| UPS Connection | Attached cable with red/black 75 amp male DC connector |
Physical
| External Battery Pack Form Factor | Rack/Tower |
|---|---|
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND ) |
| Material of Construction | Steel |
| Minimum Required Rack Depth (inches) | 28 |
| Rack Height | 3U |
| Shipping Dimensions (hwd / in.) | 12.00 x 23.00 x 32.50 |
| Shipping Weight (lbs.) | 175 |
| Unit Dimensions (hwd / in.) | 5.25 x 17.5 x 25 |
| Unit Weight (lbs.) | 138.89 |
Warranty
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Installation Guide for Select Rackmount UPS
- Owner's Manual for BP Series External Battery Packs (Multi-language)
- UPS 230V Brochure (English)
- Integrated Solutions Brochure (English)
- UPS Systems 230V Brochure (Chinese)
- EC Declaration 1. BP24V70-3U 2. BP72V28RT-3U, BP36V42-3U
- Colorado Adams County School District 50 Case Study - IT Infrastructure Protection (English)
