Brand: Tripp-Lite
|
SKU:
565186

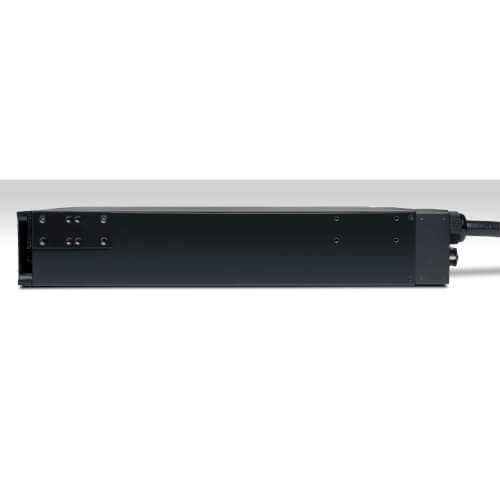

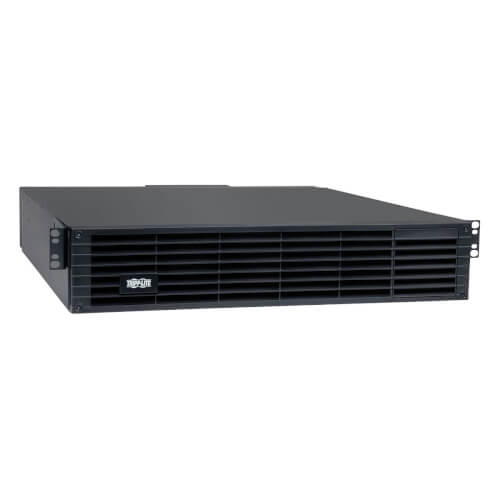

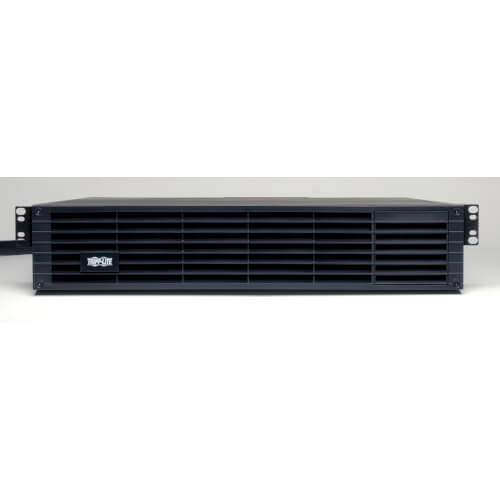

Tripp-Lite BP36V27-2US | 36V External Battery Pack for Select Tripp Lite UPS Systems, 2U Rack/Tower
Regular price
$1,412.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite BP36V27-2US | 36V External Battery Pack for Select Tripp...
Regular price
$1,412.91
Unit price
Description
Description
External battery pack provides extended runtime for compatible 36V DC Tripp Lite UPS systems.
Features
- External Battery Pack Gives Your Compatible Tripp Lite UPS System Extended Runtime

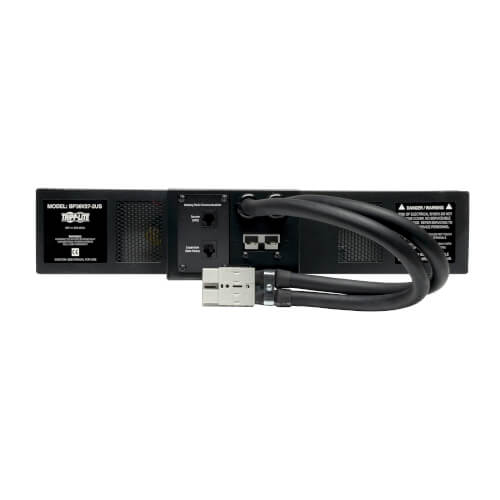

- The BP36V27-2US is compatible only with select 36V DC Tripp Lite UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current two-point DC connector is included for simple installation. Optional-use rear-panel battery detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs.
- Versatile Installation Options Allow You to Place the Battery Where Most Needed
- The steel housing supports mounting in 2U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP36V27-2US is also compatible with Tripp Lite’s 2-9USTAND for upright tower configuration, 2POSTRMKITWM for 2-post racks or wall installation and UPDHDEARKIT for 2-point front-rail rack installation without rear supports (all accessories sold separately).
- 2-Year Warranty
- The BP36V27-2US is backed by a 2-year warranty, ensuring reliability and performance.
Specifications
Specifications
Overview
| UPC Code | 37332230966 |
|---|
Input
| Input Phase | Single-Phase |
|---|
Battery
| DC System Voltage (VDC) | 36 |
|---|---|
| UPS Connection | Attached 18in. / 457mm 6AWG cable with 50A gray 2-point DC connector |
Physical
| External Battery Pack Form Factor | Rack/Tower |
|---|---|
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Material of Construction | Steel |
| Minimum Required Rack Depth (inches) | 29.1 |
| Optional Mounting Accessory Notes | Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only; without rear support |
| Rack Height | 2U |
| Shipping Dimensions (hwd / in.) | 9.50 x 26.50 x 28.50 |
| Shipping Weight (lbs.) | 105 |
| Unit Dimensions (hwd / in.) | 3.43 x 17.32 x 22.6 |
| Unit Weight (lbs.) | 68.91 |
Warranty
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Installation Guide for Select Rackmount UPS
- Owner's Manual for BP Battery (Multi-language)
- Owner's Manual for BP Series External Battery Packs (Multi-language)
- UPS Battery Packs Visio Stencil
- UPS Battery Packs Visio Stencil Preview
- UPS Systems 230V Brochure (Chinese)
- UPS 230V Brochure (English)
- Integrated Solutions Brochure (English)
- Tripp Lite UPS Battery Backup for Security Systems Flyer (English)
- EC Declaration
