Tripp-Lite BP48V27-2US | External 48V 2U Rack/Tower Battery Pack fo...
Description
Description

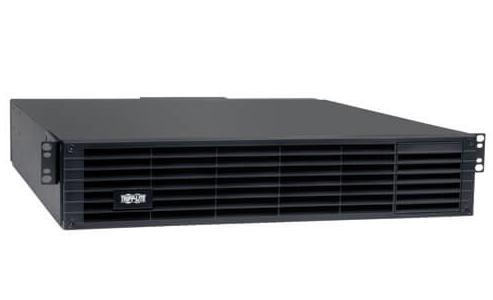

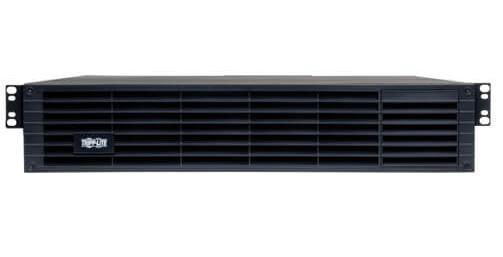

BP48V27-2US rack-mount external battery pack offers extended battery runtime when used in conjunction with expandable 48V rack-mount UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rack-mount installation in 4-post racks. Options for 2-point front-rail mounting, 2-post center-mounting and wall-mount installation available.
Tripp-Lite - BP48V27-2US - Features
- Offers extended-run UPS operation when used in conjunction with compatible 48V DC UPS systems

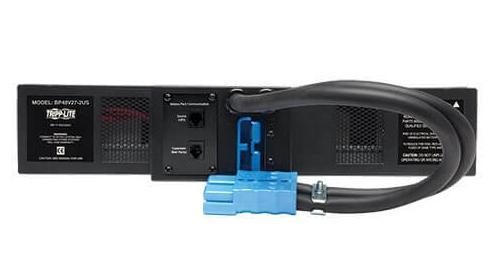

- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS
- Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
- Set of optional-use detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs
- UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
- 2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
- 2POSTRMKITWM option also enables wallmount installation
Tripp-Lite - BP48V27-2US - Features
| Tripp-Lite BP48V27-2US Data Sheet | Click to View |
|---|---|
| Tripp-Lite BP48V27-2US Installation Guide | Click to View |
Specifications
Specifications
Tripp-Lite - BP48V27-2US - Package Includes
- BP48V27-2US external battery pack with attached DC cabling
- 4 post compatible mounting hardware
- Owner's manual
Tripp-Lite - BP48V27-2US - Specifications
| UPC Code | 037332181404 |
|---|---|
| Input Phase | Single-Phase |
| DC System Voltage (VDC) | 48 |
| UPS Connection | Attached cable with blue 2-point DC connector |
| Typical Battery Lifespan | 4-6 years typical (North America) |
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack/Tower |
| Minimum Required Rack Depth (cm) | 66.04 |
| Shipping Dimensions (hwd / cm) | 24.56 x 67.11 x 71.81 |
| Shipping Weight (kg) | 56.25 |
| Unit Dimensions (hwd / cm) | 8,6 x 7,9 x 57,4 |
| Unit Weight (kg) | 39.96 |
| UNSPSC Code | 39121011 |
