Brand: Tripp-Lite
|
SKU:
565195

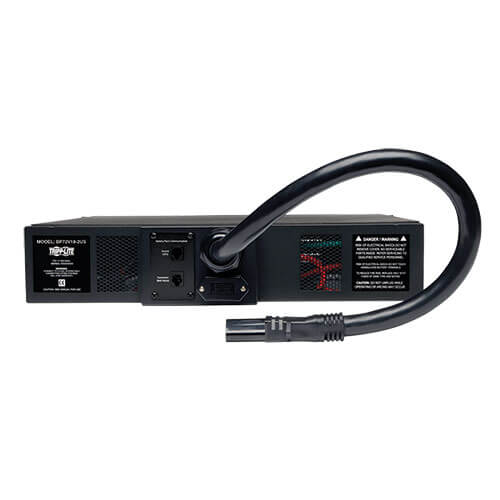

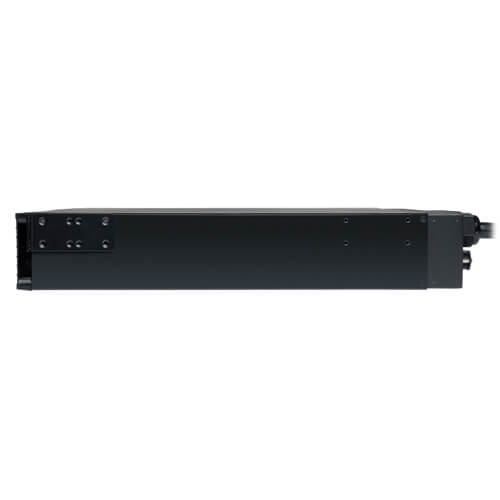

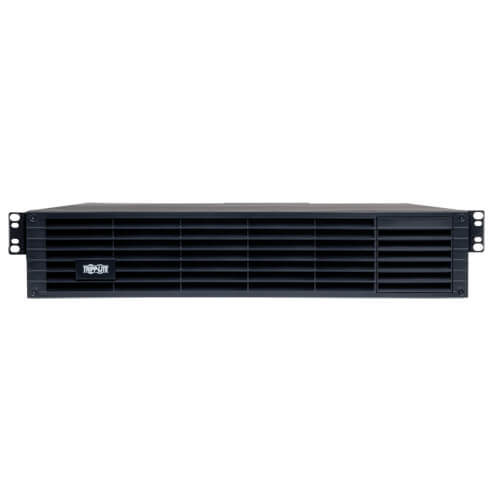

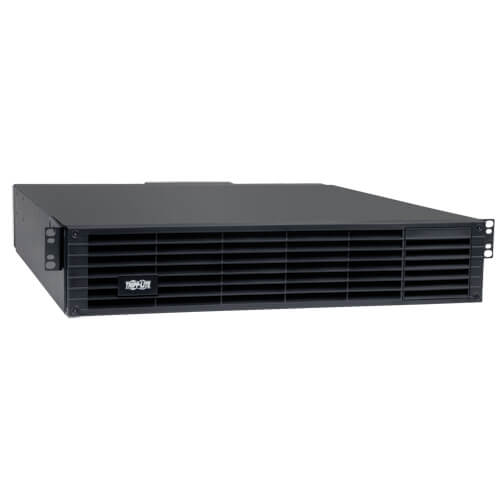

Tripp-Lite BP72V18-2US | External 72V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP72V18-2US)
Regular price
$1,770.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite BP72V18-2US | External 72V 2U Rack/Tower Battery Pack fo...
Regular price
$1,770.55
Unit price
Description
Description
BP72V18-2US rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 72V Tripp Lite rackmount or tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting, wallmount and upright tower installation available.
Compatible with these UPS Systems - SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other Tripp Lite UPS systems that specify the use of this battery pack.
Compatible with these UPS Systems - SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other Tripp Lite UPS systems that specify the use of this battery pack.
Features
- Offers extended-run UPS operation when used in conjunction with compatible 72V DC Tripp Lite UPS systems
- Includes heavy gauge cabling with high current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS
- Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
- UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
- 2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks
- 2POSTRMKITWM option also enables wallmount installation
- 2-9USTAND option enables upright tower placement
Specifications
Specifications
Overview
| UPC Code | 37332178008 |
|---|
Input
| Input Phase | Single-Phase |
|---|
Battery
| DC System Voltage (VDC) | 72 |
|---|---|
| UPS Connection | Attached cable with black 3-point DC connector |
Physical
| External Battery Pack Form Factor | Rack/Tower |
|---|---|
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND ); 2-4 post front rail rackmount ( UPSHDEARKIT ) |
| Material of Construction | Steel |
| Minimum Required Rack Depth (inches) | 26.8 |
| Rack Height | 2U |
| Shipping Dimensions (hwd / in.) | 9.00 x 28.00 x 26.00 |
| Shipping Weight (lbs.) | 126 |
| Unit Dimensions (hwd / in.) | 3.4 x 17.3 x 20.8 |
| Unit Weight (lbs.) | 88.2 |
Warranty
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
|---|---|
| Optional Coverage | 3 year, 5 year, next day and on-site warranty coverage available |
Documents and Downloads
Documents and Downloads
- Installation Guide for Select Rackmount UPS
- Owner's Manual for BP Battery (Multi-language)
- Owner's Manual for BP Series External Battery Packs (Multi-language)
- UPS Systems 230V Brochure (Chinese)
- UPS 230V Brochure (English)
- Integrated Solutions Brochure (English)
- EC Declaration
- Download images for this product
