Brand: Tripp-Lite
|
SKU:
640217
Tripp-Lite DWT3770X | Tilt Wall Mount for 37" to 70" TVs and Monitors
Regular price
$169.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite DWT3770X | Tilt Wall Mount for 37" to 70" TVs ...
Regular price
$169.51
Unit price
Description
Description
The VESA-compliant DWT3770X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Features
- Mounts Your TV or Monitor to the Wall
- Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
- Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
- Mounts out of sight behind display for sleek, professional appearance

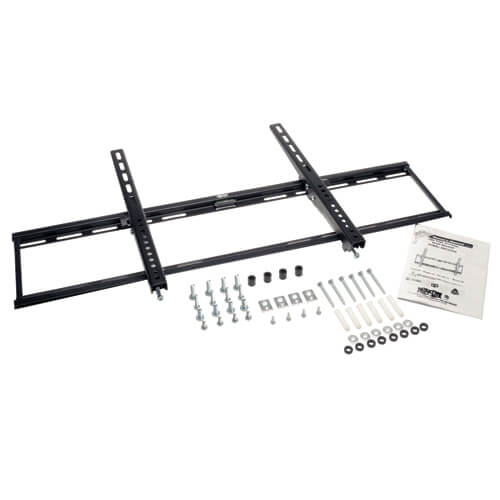

- Mounting hardware included
- Convenient One-Touch Adjustment
- -10° to 0° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
- Durable Metal Construction
- Supports up to 200 lbs (90.7 kgs)
- Open frame allows easy wall access
- Adjustable mounting rails compensate for off-center wall studs
- Built-in bubble level for accurate display leveling
- Scratch-resistant powder-coated finish
- VESA Compliance
- Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Features & Specifications
| Tools Necessary | Yes |
|---|
Special Features
| Cord Management | No |
|---|---|
| Security Lock | No |
Specifications
Specifications
Overview
| UPC Code | 37332183613 |
|---|---|
| Device Compatibility | Monitor/HDTV |
Physical
| Color | Black |
|---|---|
| VESA Pattern (mm) | 200x200; 200x300; 200x400; 300x200; 300x300; 300x400; 400x200; 400x300; 400x400; 500x300; 500x400; 600x300; 600x400; 800x300; 800x400 |
| Degrees of Motion | -10/+0 Tilt |
| Distance from Wall (in.) | 1.77 |
| Material of Construction | Steel |
| Maximum Screen Size (in.) | 70 |
| Maximum Weight Capacity (lbs.) | 200 |
| Minimum Screen Size (in.) | 37 |
| Motion | Tilt |
| Mounting Location | Wall |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / in.) | 8.40 x 2.60 x 35.00 |
| Shipping Weight (lbs.) | 7.18 |
Standards & Compliance
| Approvals | RoHS3, REACH |
|---|
