Brand: Tripp-Lite
|
SKU:
10615098
Tripp-Lite EMAGKEA5A5A5A5L | Eaton 3-Phase Managed HDX Rack PDU G4, 208V, 48 Outlets (24 C13 + 24 C39), 100A, 36kW, Hardwired Input, 0U Vertical, TAA
Regular price
$5,369.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite EMAGKEA5A5A5A5L | Eaton 3-Phase Managed HDX Rack PDU G4,...
Regular price
$5,369.70
Unit price
Brand: Tripp-Lite
|
SKU:
10615098
Regular price
$5,369.70
Unit price
Shipping calculated at checkout.
Description
Description

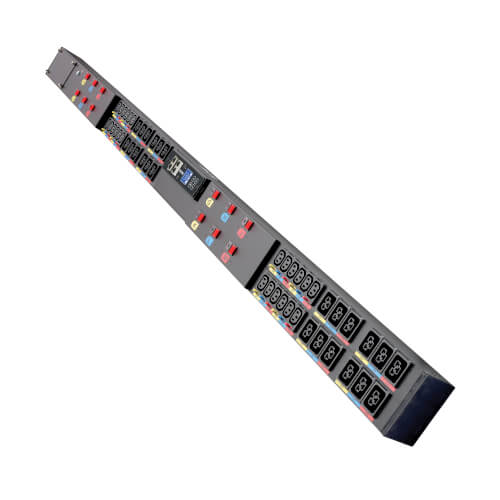

Tripp-Lite EMAGKEA5A5A5A5L | Eaton 3-Phase Managed HDX Rack PDU G4, 208V, 48 Outlets (24 C13 + 24 C39), 100A, 36kW, Hardwired Input, 0U Vertical, TAA
Managed PDU with ultra-high-density power is ideal for GPU-intensive enterprise data centers, colocation data centers and edge computing applications.
Tripp-Lite - EMAGKEA5A5A5A5L - Features
- Managed PDU with ultra-high-density power is ideal for GPU-intensive enterprise data centers, colocation data centers and edge computing applications.
- High-power PDU capable of supporting multiple GPU/LPU servers in a single rack
- Recommended for GPU-intensive applications like HPC and generative AI
- Hot-swappable Gigabit Network Module offers industry-leading cybersecurity
- Outlet-level control and remote management help reduce costs and increase efficiency
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Specifications
Specifications
Tripp-Lite - EMAGKEA5A5A5A5L - Package Includes
- EMAGKEA5A5A5A5L 3-Phase Managed HDX Rack PDU G4
Tripp-Lite - EMAGKEA5A5A5A5L - Specifications
| UPC Code | 037332296351 |
|---|---|
| PDU Type | Managed |
| Input Phase | 3-Phase |
| PDU Input Voltage | 208 |
| Nominal Input Voltage(s) Supported | 200-240V 3-PH Delta |
| Nominal Input Voltage Description | 3P: 208V |
| Recommended Electrical Service | Three-phase 208V service |
| Maximum Input Amps | 100 |
| Input Connection Type | Hardwire |
| PDU Plug Type | Hardwire |
| Voltage Compatibility (VAC) | 208; 3-Phase |
| Input Plug Type | Hard-wire |
| Input Cord Details | Hardwire |
| Output Capacity (kVA) | 36.02 |
| Output Capacity (Watts) | 3602 |
| Output Capacity (kW) | 36.02 |
| Output Capacity Details | 36kW (208V) total capacity; 100A max per output phase |
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacle Details | C39 Compatible with P-Lock Power Cords |
| Nominal Output Voltage(s) Supported | 208V |
| Output Receptacles | (24) C13; (24) C39 |
| Circuit Breaker (amps) | 20 |

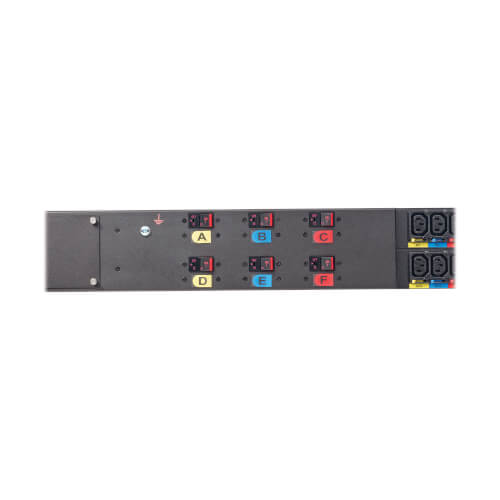

| Overload Protection | (12) 2-pole 20A circuit breakers |
| Ethernet Interface | Yes |
| Serial Interface | Yes |
| Daisy-chainable / Cascadable | Yes |
| Daisy-chainable / Cascadable Details | Cascade up to 40 PDUs |
| Material of Construction | Aluminum |
| Rack Height | 0U |
| Form Factors Supported | Vertical |
| Housing Color | Black |
| PDU Form Factor | Vertical (0U) |
| Shipping Dimensions (hwd / in.) | 77.30 x 5.00 x 3.00 |
| Shipping Weight (lbs.) | 31.33 |
| Operating Temperature Range | 32° to 140°F (0° to 60°C) |
| Storage Temperature Range | -13° to 149°F (-25° to 65°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Elevation | 0-10000 ft. (0-3000 m) |
| Storage Elevation (ft.) | 0-50000 ft. (0-15240 m) |
| Product Certifications | UL Listed; cUL Listed |
