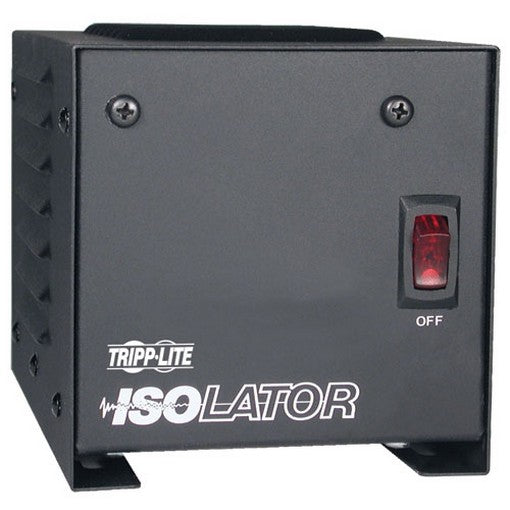

Tripp-Lite IS250 Isolation Transformer-Based Power Conditioner - Superior Line Noise Reduction And Spike Suppression

Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced normal and common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Continuous transformer filtering with no wearable parts uniquely reduces surges in the worst of power environments to harmless levels. Reduces 6000V IEEE C62.41 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250 offers 250 watts capacity with 2 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.

Features

Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced common mode surge suppression

Supports combined loads up to 250 watts continuous/2.1A at 120V

Isolation transformer with Faraday Shield offers 100% isolation from the input AC line

Neutral to ground bonding at the secondary eliminates common mode noise and provides an isolated ground reference for sensitive equipment

Isolation transformer design serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades

Removes EMI/RFI noise, utility switching transients, background spikes and power problems generated by other on-site loads, utility grid-switching and lightning related surges

Line isolation with additional surge suppression components offer continuous line filtering of a full range of power line noise in all modes

Continuous transformer filtering with no wearable parts reduces surges in the worst of power environments to harmless levels

Includes 2 widely-spaced NEMA5-15R output receptacles, 6 ft power cord, circuit breaker overload protection and lighted power switch

Rugged all-metal housing ships ready for upright tower or wallmount installation

Specs

Manufacturer Tripp-Lite

Condition New

Amp Capacity 2.1A at 120V AC

Efficiency 96%

Form Factor Small tower format, wall mountable

Input Plug Type NEMA 5-15P

Let-through Voltage (Combination Wave) L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B

Let-through Voltage (Ring Wave) L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A

Noise Suppression Rating 33-65dB normal mode; >80dB common mode

Nominal Voltage / Frequency 120V / 60Hz

Output Receptacle Qty / Type 2 NEMA 5-15R

Over Current Protection Yes, 2A circuit breaker

Suppression Joule Rating 680 Joules

Surge Test Conditions Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms

Total Harmonic Distortion less than 1%

Transformer Type Low impedence isolation transformer

VA / Watt Capacity 250

Input cord length (ft.) 6

Input cord length (m) 1.83

Cooling method Convection

Unit Dimensions (HWD/in) 4.75 x 4.75 x 7.5

Unit Dimensions (HWD/cm) 12.07 x 12.07 x 19.05

Shipping Dimensions (HWD/in) 5.75 x 7.25 x 9

Shipping Dimensions (HWD/cm) 14.61 x 18.42 x 22.86

Receptacle Color Black
