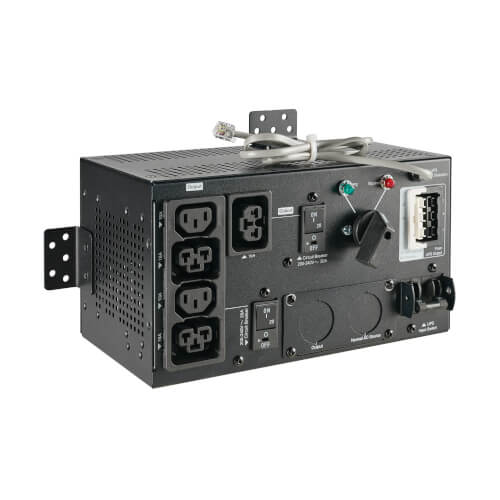

Tripp-Lite MBP6KIECG2 | 9PX G2 Maintenance Bypass for 9PX6KIECG2 UP...
Description
Description
The MBP6KIECG2 works with Eaton’s 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode. The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or xtended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
Tripp-Lite - MBP6KIECG2 - Features
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- C39 combo outlets accept C14 and C20 connectors, adding flexibility to deploymentsÔCompatible with Eaton?s 9PX6KIECG2 9PX G2 UPS system
Specifications
Specifications
Tripp-Lite - MBP6KIECG2 - Specifications
| UNSPSC Code | 39121011 |
|---|---|
| UPC Code | 786689876067 |
| UPS Input Connection Type | Hardwire |
| Input Plug Type | Hard-wire; NEMA L6-30P |
| Output Capacity (VA) | 6000 |
| Output Capacity (kVA) | 6 |
| Frequency Compatibility | 50 / 60 Hz |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Receptacles | (2) C13; (3) C39 |
| Primary Form Factor | Rackmount; Tower |
| Rack Height | 0U |
| Unit Dimensions (hwd / in.) | 5.120 x 9.410 x 4.920 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
