Brand: Tripp-Lite
|
SKU:
10615073
Tripp-Lite MTB4-DOCK01A | Thunderbolt 4 Dock - 8K HDMI and Thunderbolt, USB-C and USB-A Ports, 2.5 GbE, 96W PD Charging
Regular price
$520.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite MTB4-DOCK01A | Thunderbolt 4 Dock - 8K HDMI and Thunderb...
Regular price
$520.04
Unit price
Description
Description

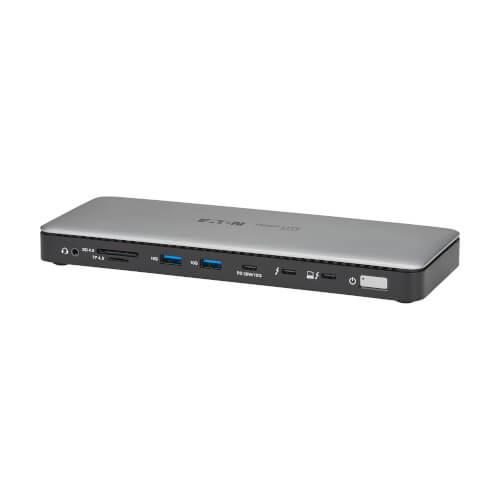

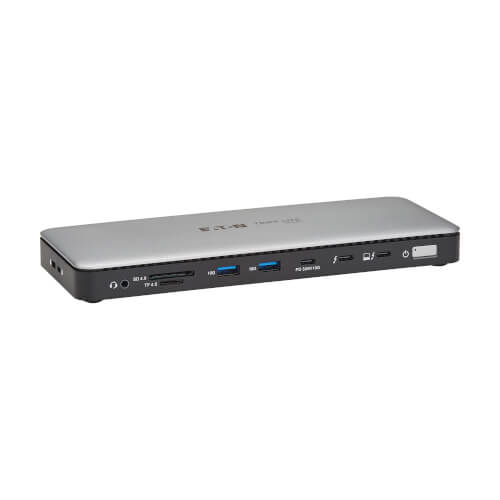

Tripp-Lite MTB4-DOCK01A | Thunderbolt 4 Dock - 8K HDMI and Thunderbolt, USB-C and USB-A Ports, 2.5 GbE, 96W PD Charging
Routes and organizes network cabling through your 19 in. rack enclosure while maintaining proper bend radius.
Tripp-Lite - MTB4-DOCK01A - Features
- Turns your MacBook Pro or Windows laptop into a multiport workstation capable of transmitting 8K video.
- Supports Thunderbolt 4 data speeds up to 40 Gbps between compatible devices
- Transmits 8K or 4K @ 144 Hz, including 8K @ 30 Hz + 4K @ 60 Hz or dual 4K @ 60 Hz
- Allows cascading up to 6 Thunderbolt devices and supports 15W charging
- 3x USB 3.2 Gen 2 and 2x USB 3.2 Gen 1 ports connect storage and other peripherals
- Joins a wired 2.5 Gb Ethernet network when Wi-Fi is unavailable or weak
- 1-year limited warranty
Specifications
Specifications
Tripp-Lite - MTB4-DOCK01A - Specifications
| UPC Code | 037332284976 |
|---|---|
| Product Type | Docking Station |
| Video Input | THUNDERBOLT 4 (USB-C FEMALE) |
| Video Output | HDMI (FEMALE); THUNDERBOLT 4 (USB-C FEMALE) |
| Number of Monitors Supported | 2 |
| Video Ports | (2) HDMI (FEMALE); (1) THUNDERBOLT 4 (USB-C FEMALE) |
| Video Ports Details | Thunderbolt 4; HDCP 1.4; HDCP 2.3 |
| Resolutions Supported | The MTB4-DOCK01A supports the following video resolution outputs:Thunderbolt 4 / USB4 / Thunderbolt 3 Host (DP 1.4):Single Output: Thunderbolt 4 (8K/30 Hz or 4K/120Hz), HDMI ports (8K/60 Hz DSC)Dual Output: Thunderbolt 4 (8K/30 Hz) + HDMI (4K/30 Hz), Thunderbolt 4 (4K/60 Hz) + HDMI (8K/30 Hz DSC), HDMI #1 + HDMI #2 (8K/30 Hz DSC + 4K/60 Hz DSC)Note: Only 2 video outputs can be used at once, utilized in order of connectionThunderbolt 3 Host (DP 1.2):Single Output: Thunderbolt 4 (4K/60Hz), HDMI ports (4K/60 Hz)Dual Output: Thunderbolt 4 (4K/60 Hz) + HDMI (4K/60 Hz), HDMI #1 + HDMI #2 (4K/60 Hz + 4K/60 Hz)Note: Only 2 video outputs can be used at once, utilized in order of connectionUSB-C MFDP Host (DP 1.4):Single Output: Thunderbolt 4 (4K/60Hz), HDMI ports (8K/30 Hz)Note: Only 1 video output can be used at once, utilized in order of connectionUSB-C MFDP Host (DP 1.2):Single Output: Thunderbolt 4 (4K/30Hz), HDMI ports (4K/30 Hz)Note: Only 1 video output can be used at once, utilized in order of connection |
| Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K); 5120x2880 (5K); 7680x4320 (8K) |
| Max Supported Video Resolution | 8K (7680 x 4320) @ 60 Hz (Single Display); 4K (3840 x 2160) @ 60 Hz (Dual Displays) |
| Extended Mode | Yes |
| Extended Mode Details | A desktop is able to be extended via the following video output combinations, depending on the video output functionality of the host and display(s) used.Thunderbolt 4 / USB4 / Thunderbolt 3 Host (DP 1.4):Single Output: Thunderbolt 4 (8K/30 Hz or 4K/120Hz), HDMI ports (8K/60 Hz DSC)Dual Output: Thunderbolt 4 (8K/30 Hz) + HDMI (4K/30 Hz) Thunderbolt 4 (4K/60 Hz) + HDMI (8K/30 Hz DSC), HDMI #1 + HDMI #2 (8K/30 Hz DSC + 4K/60 Hz DSC)Note: Only 2 video outputs can be used at once, utilized in order of connectionThunderbolt 3 Host (DP 1.2):Single Output: Thunderbolt 4 (4K/60Hz), HDMI ports (4K/60 Hz)Dual Output: Thunderbolt 4 (4K/60 Hz) + HDMI (4K/60 Hz), HDMI #1 + HDMI #2 (4K/60 Hz + 4K/60 Hz)Note: Only 2 video outputs can be used at once, utilized in order of connectionUSB-C MFDP Host (DP 1.4):Single Output: Thunderbolt 4 (4K/60Hz), HDMI ports (8K/30 Hz)Note: Only 1 video output can be used at once, utilized in order of connectionUSB-C MFDP Host (DP 1.2):Single Output: Thunderbolt 4 (4K/30Hz), HDMI ports (4K/30 Hz)Note: Only 1 video output can be used at once, utilized in order of connection |
| Mirror Mode | Yes |
| Audio Ports | 3.5MM (FEMALE) |
| Audio Ports Details | DAC supports 44.1/48/96/192KHz/384KHz Sample Rate, 16/24/32-bitADC input supports 48KHz sample rate, 16-bitSupports stereo audio or microphone inputAutomatic detection switch to CTIA/MTP mode |
| Data Ports | (1) THUNDERBOLT 4 (USB-C FEMALE); (4) USB A (FEMALE); (1) USB C (FEMALE) |
| Data Ports Details | (2) USB-A - USB 3.2 Gen 1 (5 Gbps); (2) USB-A - USB 3.2 Gen 2 (10 Gbps); (1) USB-C - Thunderbolt 4 (40 Gbps); (1) USB-C - USB 3.2 Gen 2 (10 Gbps) |
| Card Slots | MICRO SD (FEMALE); SD (FEMALE) |
| Card Slots Details | SD 4.0 and TF 4.0 slots support SD 4.0 data transfer speeds up to 312MBpsBoth slots can be used simultaneously |
| AC Power Adapter Plug(s) | NEMA 5-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 2.5A |
| AC Power Adapter Output Specs (V / A) | 21V / 7.1A |
| AC Power Adapter Cord Length (ft.) | 3.28 |
| AC Power Adapter Cord Length (m) | 1 |
| Number of Ports | 13 |
