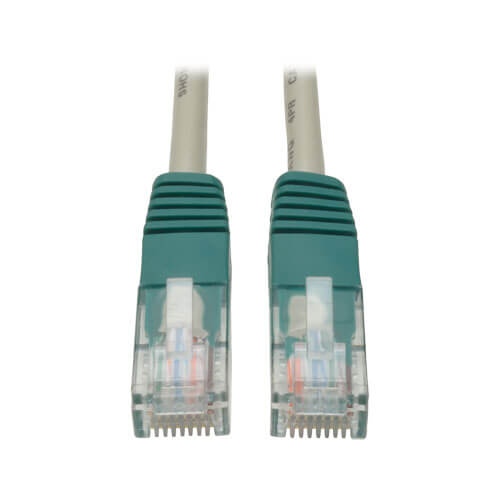

Tripp-Lite N010-007-GY | Cat5e 350 MHz Crossover Molded (UTP) Ethernet Cable (RJ45 M/M) - Gray, 7 ft. (2.13 m)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N010-007-GY | Cat5e 350 MHz Crossover Molded (UTP) Ether...
Description
Description
Tripp Lite's 7-ft. (2.13 m) gray category 5e (Cat5e) cross-over molded cable has 2 standard RJ45 molded male connectors featuring integral strain relief. The cable is designed to connect hub-to-hub, PC-to-PC or Mac-to-Mac and is perfect in conjunction with 10 and 100 base-t networks. Molded connectors are a different color to help identify this cable as a cross-over cable and not a standard patch cable. Manufactured from PVC 4-pair stranded UTP and rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Snagless category 5e patch cables are also available. Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11).
Features
- Cabling for category 5 (Cat5) and 5e (Cat5e) applications
- Length: 7-ft. (2.13 m) color: gray with green connectors. Connectors: RJ45 male
- Cross-over wiring designed to connect hub-to-hub or PC-to-PC
- Feature molded connectors with integral strain relief
- Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
- PVC 4-pair stranded UTP
- Rated for 350MHz/ 1Gbps communication
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
- Available in other lengths
Specifications
Specifications
Overview
| UPC Code | 37332013026 |
|---|---|
| Technology | Cat5/5e |
Physical
| Color | Gray |
|---|---|
| Cable Shielding | UTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 5.0mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Cable Length (ft.) | 7 |
| Cable Length (in.) | 84 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.14 |
Environmental
| Operating Temperature Range | 14 to 104 F (-10 to 40 C) |
|---|---|
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
Communications
| Bandwidth per TIA Standard | 100 MHz |
|---|---|
| Maximum Bandwidth as Tested | 350 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3ab |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Crossover Wiring | Yes |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
