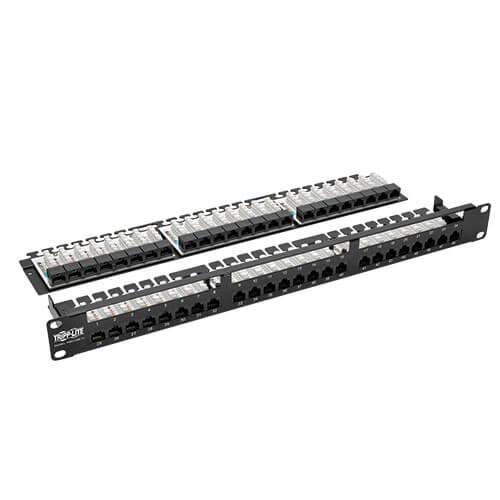

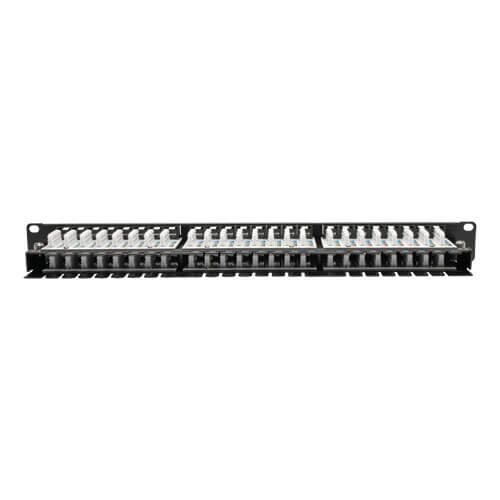

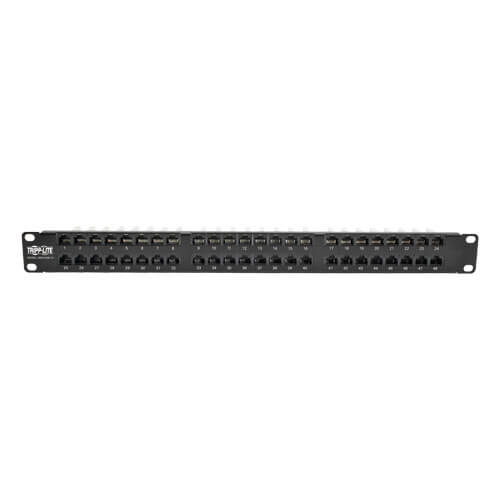

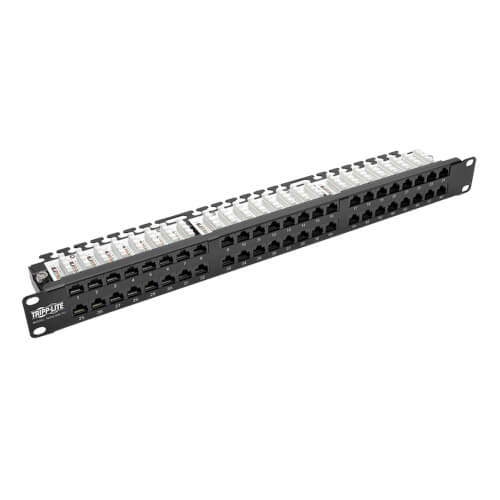

Tripp-Lite N052-048-1U | 48-Port 1U Rack-Mount High-Density UTP 110-Type Patch Panel, RJ45 Ethernet, 568B, Cat5/5e, TAA
Regular price
$221.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N052-048-1U | 48-Port 1U Rack-Mount High-Density UTP 110...
Regular price
$221.56
Unit price
Description
Description
The N052-048-1U 48-Port 1U Rack-Mount High-Density 110-Type Patch Panel frees up valuable real estate by condensing 48 ports into just 1U of space in your EIA-standard 19-inch rack. Made from heavy-duty 14ga cold-rolled steel, this patch panel includes a built-in cable-management loom that keeps cables efficiently organized on the back of the panel.
The N052-048-1U is specially designed for easy punchdown termination. Just remove four screws to take off the upper deck, punch down the lower cables, replace the upper deck, and punch down the upper cables. Ports are clearly numbered to help you identify connections and color-coded for 568A/B wiring. Includes 48 nylon cable ties. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Meets ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7 standards.
UTP Cat5e 22-24 AWG Solid Cable
Features
- Condenses 48 Ports into Just 1U of Rack Space
- Ports are numbered and color-coded for easy identification
- Heavy-duty 14ga cold-rolled steel construction
- Meets ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7 standards
- Built-In Cable-Management Loom in Rear
- Keeps cabling efficiently organized and reduces clutter
- 48 nylon cable ties included
- Specially Designed for Easy Punchdown Termination
- Simply remove upper level for easy access to lower level of ports
- Quick, Easy Installation
- Mounts easily into 1U of EIA-standard 19 in. rack
- TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases
Specifications
Specifications
Overview
| UPC Code | 37332197474 |
|---|---|
| Technology | Cat5/5e |
Physical
| Shipping Dimensions (hwd / in.) | 2.00 x 4.20 x 20.50 |
|---|---|
| Shipping Weight (lbs.) | 3.70 |
Connections
| Ports | 48 |
|---|---|
| Side A - Connector 1 | 110 IDC |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
