Tripp-Lite N080-SMB1-WH | Single-Gang Surface-Mount Back Box, White, TAA
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N080-SMB1-WH | Single-Gang Surface-Mount Back Box, White...
Regular price
$10.81
Unit price
Description
Description

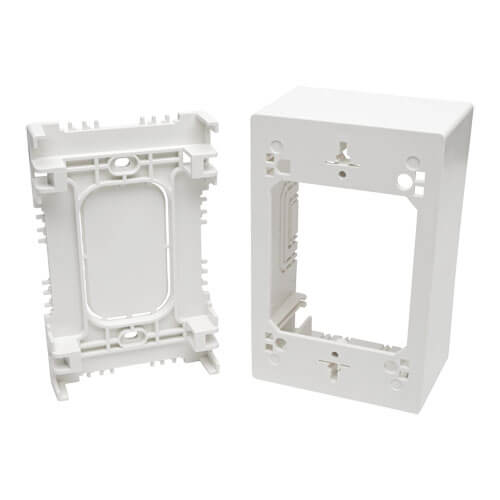

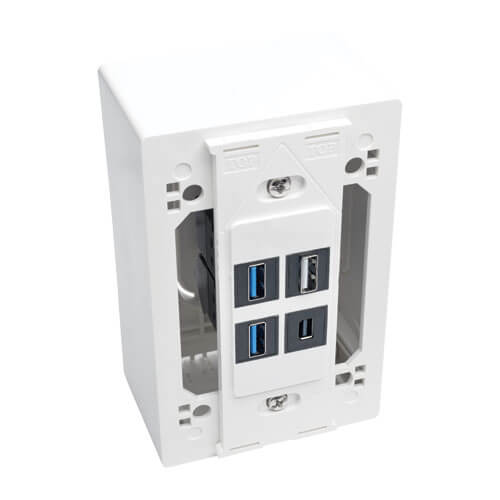

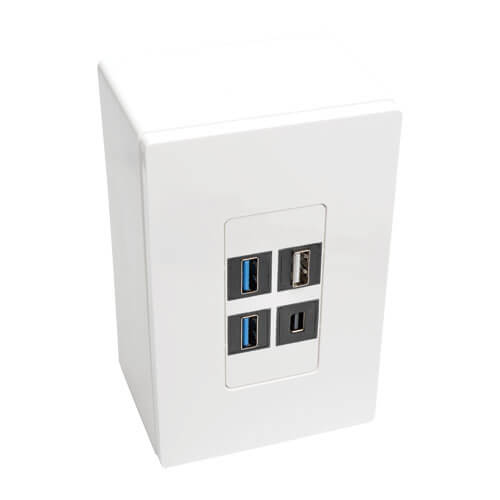

The N080-SMB1-WH Single-Gang Surface-Mount Junction Box is perfect for mounting a wallplate to complete multiple audio/video, voice and Ethernet in-wall connections using any type of
keystone jack, including Cat5e/6/6a, USB, HDMI, DisplayPort and RCA. Designed to work with mid-sized and standard single-gang wallplates, such as Tripp Lite’s N080-Series, this back box is two inches deep. It features raceway cutouts in three different sizes (1 inch, 1.25 inches and 1.75 inches in diameter) on each side, as well as a rectangular knockout on the back. The cover snaps securely to the base with no screws required. Made from durable ABS thermoplastic. White color blends elegantly into any home or office décor for a sleek, professional installation. Includes two mounting screws for easy installation. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Completes Multiple A/V, Voice and Ethernet In-Wall Applications
- Compatible with mid-sized and standard single-gang wallplates (including Tripp Lite’s N080-Series)
- 2 in. deep
- Raceway cutouts on each side in 3 sizes: 1, 1.25 and 1.75 in. diameter
- Rear rectangular knockout

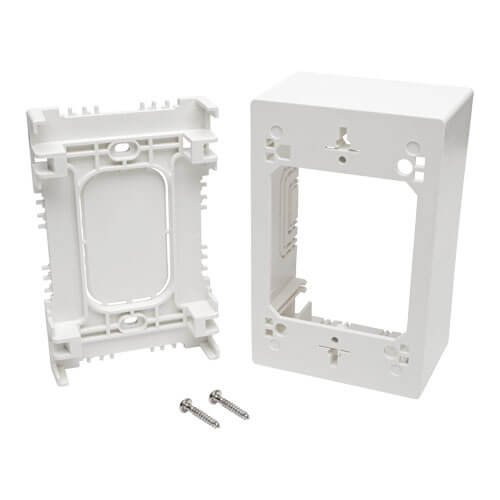

- Mounting hardware included
- Durable Construction
- Made from high-impact ABS thermoplastic
- Comes in white to blend into home or office décor
- Cover snaps to the base with no screws required
- TAA Compliant
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Specifications
Overview
| UPC Code | 37332195586 |
|---|---|
| Technology | Cat5/5e; Cat6; Cat6a; USB 2.0 (High Speed); USB 3.0 (SuperSpeed); HDBaseT; HDMI; USB; DisplayPort |
Physical
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.50 x 7.08 x 10.63 |
| Shipping Weight (lbs.) | 0.28 |
| Unit Dimensions (hwd / in.) | 5.10 x 3.30 x 2.10 |
| Unit Weight (lbs.) | 0.27 |
Environmental
| Operating Temperature Range | 14 to 140 F (-10 - 60 C) |
|---|---|
| Storage Temperature Range | -40 to 154.4 F (-40 to 68 C) |
Connections
| Side A - Connector 1 | KEYSTONE JACK CUTOUT |
|---|---|
| Side B - Connector 1 | KEYSTONE JACK CUTOUT |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
