Brand: Tripp-Lite
|
SKU:
931633

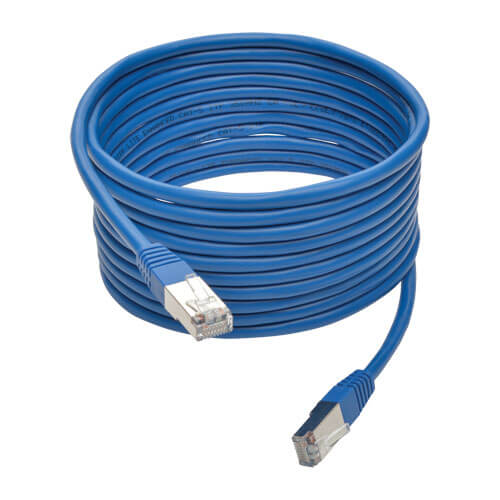

Tripp-Lite N105-015-BL | Cat5e 350 MHz Molded Shielded (STP) Ethernet Cable (RJ45 M/M), Blue, 15 ft. (4.57 m)
Regular price
$15.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N105-015-BL | Cat5e 350 MHz Molded Shielded (STP) Ethern...
Regular price
$15.67
Unit price
Description
Description
The N105-015-BL Cat5e 350 MHz Molded Shielded STP Patch Cable is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 15-ft. (4.57 m) blue cable ensures peak performance throughout your local area network (LAN). EMI/RFI shielding protects your Ethernet network from disruptive line noise.
Manufactured from 24 AWG copper wire and a durable PVC jacket, the four-pair stranded STP N105-015-BL delivers speeds up to 350 MHz/1 Gbps. Molded RJ45 male connectors with gold-plated contacts guarantee an accurate signal transfer. Integral strain relief ensures the cable and connectors last a long time. Certified to TIA/EIA-568B and UL standards.
Manufactured from 24 AWG copper wire and a durable PVC jacket, the four-pair stranded STP N105-015-BL delivers speeds up to 350 MHz/1 Gbps. Molded RJ45 male connectors with gold-plated contacts guarantee an accurate signal transfer. Integral strain relief ensures the cable and connectors last a long time. Certified to TIA/EIA-568B and UL standards.
Features
- Recommended Solution for Your Networking Needs
- Ideal for connecting components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers
- Designed for fast transmission and excellent signal quality
- Ensures peak performance throughout your LAN
- EMI/RFI shielding protects network from disruptive line noise
- Delivers speeds up to 350 MHz/1 Gbps
- Premium Construction for Superior Performance
- Made from 24 AWG copper wire
- PVC 4-pair stranded STP with drain wire

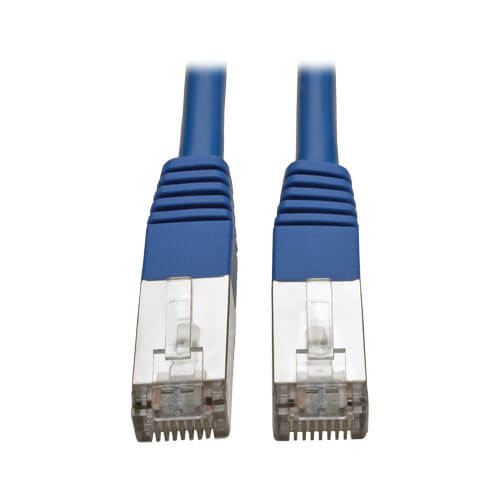

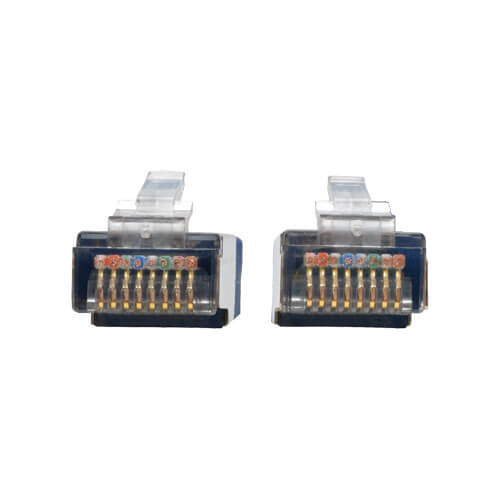

- Molded RJ45 male connectors with gold-plated contacts

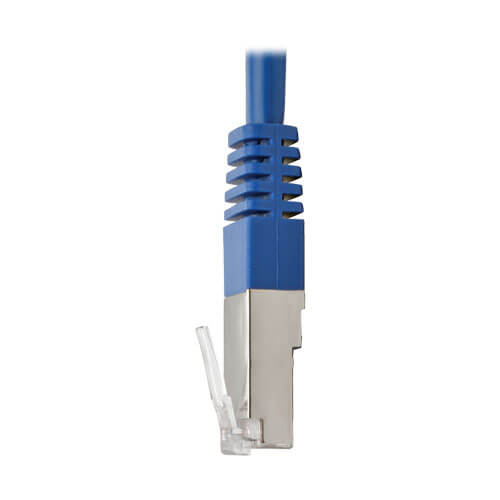

- Integral strain relief for long life
- TIA/EIA and UL certified
Specifications
Specifications
Overview
| UPC Code | 37332148254 |
|---|---|
| Technology | Cat5/5e |
Physical
| Color | Blue |
|---|---|
| Cable Shielding | FTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 5.9MM |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 15 |
| Cable Length (in.) | 180 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.43 |
Environmental
| Operating Temperature Range | 14 to 104 F (-10 to 40 C) |
|---|---|
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
Communications
| Bandwidth per TIA Standard | 100 MHz |
|---|---|
| Maximum Bandwidth as Tested | 350 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3ab |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
