Brand: Tripp-Lite
|
SKU:
641990

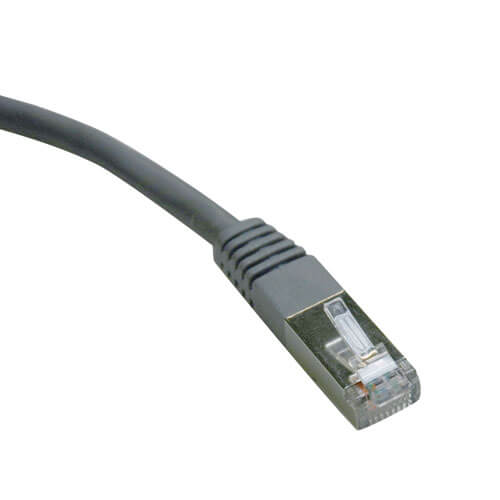

Tripp-Lite N105-100-GY | Cat5e 350 MHz Molded Shielded (STP) Ethernet Cable (RJ45 M/M), Gray, 100 ft. (30.5 m)
Regular price
$61.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N105-100-GY | Cat5e 350 MHz Molded Shielded (STP) Ethern...
Regular price
$61.36
Unit price
Description
Description
Protect your high-speed network from noise and electromagnetic interference with Tripp Lite's 100-ft. (30.5 m) Category 5e (Cat5e) Gray Shielded Patch Cable. This STP cable features 2 shielded RJ45 Gold molded male connectors with integral strain relief. The cable is manufactured from PVC, 4-pair, stranded shielded twisted pair, and is rated for 350MHz/1Gbps communication.
Features
- Provides EMI/RFI shielding in Ethernet networks
- Shielded RJ45 connectors with gold-plated contacts
- 4-pair 24 AWG Stranded STP with drain wire
- Molded boot for extra strain relief and durability
- TSB 568B (AT&T 258A)Wiring
- TIA/EIA and UL Certified
Specifications
Specifications
Overview
| UPC Code | 37332099129 |
|---|---|
| Technology | Cat5/5e |
Physical
| Color | Gray |
|---|---|
| Cable Shielding | FTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 5.9MM |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 100 |
| Cable Length (in.) | 1200 |
| Shipping Dimensions (hwd / in.) | 12.00 x 10.00 x 0.50 |
| Shipping Weight (lbs.) | 2.50 |
Environmental
| Operating Temperature Range | 14 to 104 F (-10 to 40 C) |
|---|---|
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
Communications
| Bandwidth per TIA Standard | 100 MHz |
|---|---|
| Maximum Bandwidth as Tested | 350 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3ab |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
