Brand: Tripp-Lite
|
SKU:
812347

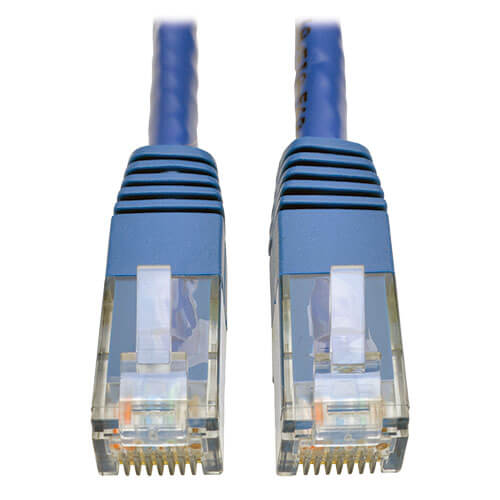

Tripp-Lite N200-005-BL | Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), Blue, 5 ft. (1.52 m)
Regular price
$7.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N200-005-BL | Cat6 Gigabit Molded (UTP) Ethernet Cable (...
Regular price
$7.51
Unit price
Description
Description
Ideal for connecting high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modems, in a home or office Cat5/5e/6 application.
Features
- The Ideal Solution for All High-Speed Cat5/5e/6 Networking
- Connects high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modems
- Designed for 1000Base-T, 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
- Recommended for home or office applications
- Provides high-speed connections up to 550 MHz/1 Gbps
- Flawless signal delivery with minimal near-end crosstalk levels
- Premium Construction Ensures Error-Free Signal Transfer
- Manufactured from 24 AWG 4-pair stranded UTP with staggered-pin plug design
- Molded RJ45 connectors and gold-plated copper contacts for maximum conductivity and minimum data loss
- Integral strain relief protects cable and connectors from stress and cracking
- Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Specifications
Specifications
Overview
| UPC Code | 37332194466 |
|---|---|
| Technology | Cat6 |
Physical
| Color | Blue |
|---|---|
| Cable Shielding | UTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 6.0mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 5 |
| Cable Length (in.) | 60 |
| Shipping Dimensions (hwd / in.) | 7.00 x 9.00 x 0.50 |
| Shipping Weight (lbs.) | 0.16 |
Environmental
| Operating Temperature Range | 14 to 104 F (-10 to 40 C) |
|---|---|
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
Communications
| Bandwidth per TIA Standard | 250 MHz |
|---|---|
| Maximum Bandwidth as Tested | 500 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3an |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
