Brand: Tripp-Lite
|
SKU:
931713

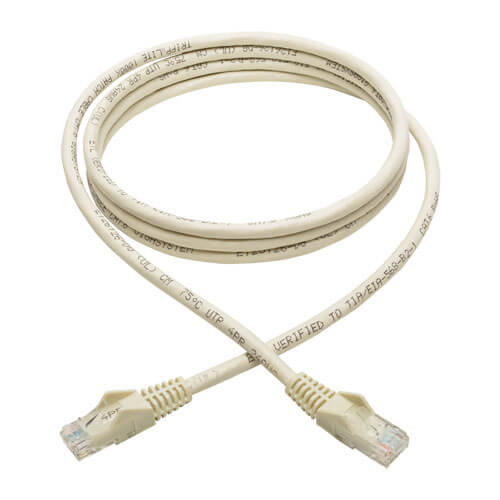

Tripp-Lite N201-006-WH | Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), White, 6 ft. (1.83 m)
Regular price
$6.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N201-006-WH | Cat6 Gigabit Snagless Molded (UTP) Etherne...
Regular price
$6.69
Unit price
Description
Description
Connects critical components, such as computers, network adapters, routers, servers, modems, hubs and switches, in Gigabit Ethernet networks. Recommended for distributing data, voice and video in high-density data centers.
Features
- Perfect Solution for Your Cat6 Gigabit Ethernet Networking Needs
- Ideal for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers
- Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
- Ensures peak performance throughout your LAN
- Rated for 550 MHz/1 Gbps communications
- Reduces impedance and structural return loss compared to standard 100 MHz wire

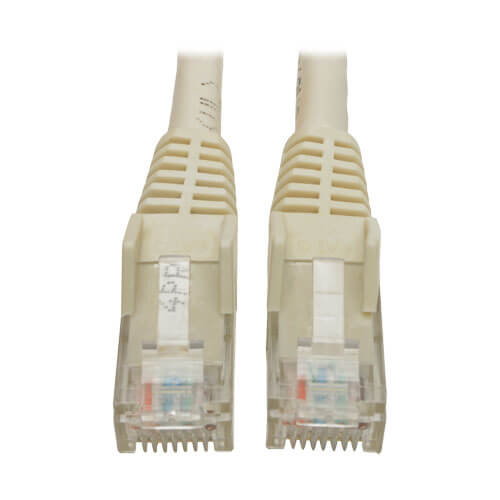

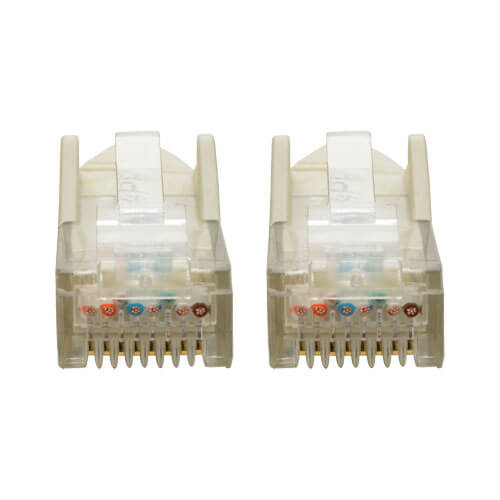

- Snagless RJ45 Male Connectors

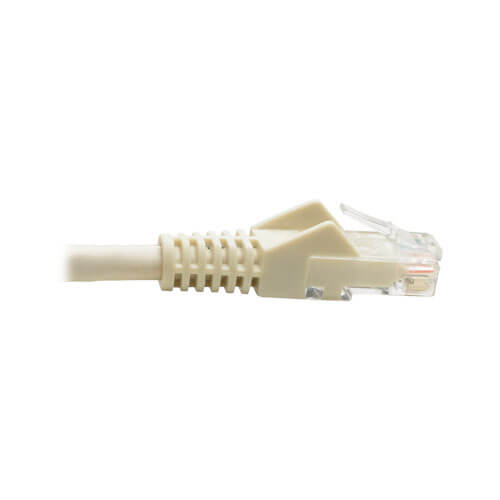

- Molded snagless boots prevent locking tabs from damage during installation
- Premium Construction for Superior Performance
- High-quality 24 AWG 4-pair stranded copper wire
- Minimal near-end crosstalk ensures a strong signal
- Integral strain relief protects cable and connectors from stress and cracking
- Rugged PVC jacket stands up to long-term use
- Meets Top Cabling Standards
- Meets Cat6 TIA/EIA standards
- Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)
Specifications
Specifications
Overview
| UPC Code | 37332202666 |
|---|---|
| Technology | Cat6 |
Physical
| Color | White |
|---|---|
| Cable Shielding | UTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 6.0mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 6 |
| Cable Length (in.) | 72 |
| Shipping Dimensions (hwd / in.) | 0.50 x 6.90 x 9.00 |
| Shipping Weight (lbs.) | 0.20 |
Environmental
| Operating Temperature Range | 14 to 122 F (-10 to 50 C) |
|---|---|
| Storage Temperature Range | 5 to 140 F (-15 to 60 C) |
Communications
| Bandwidth per TIA Standard | 250 MHz |
|---|---|
| Maximum Bandwidth as Tested | 500 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3an |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Crossover Wiring | No |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
