Brand: Tripp-Lite
|
SKU:
642044

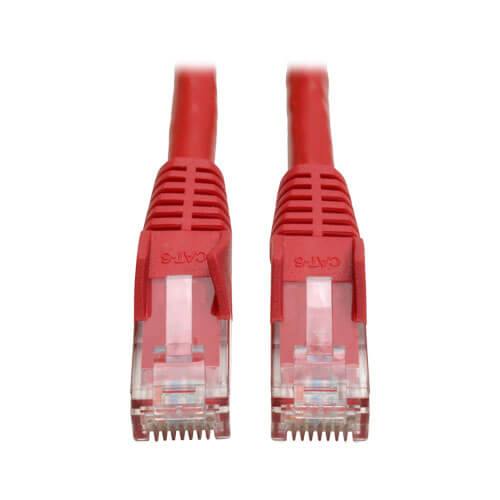

Tripp-Lite N201-007-RD | Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), Red, 7 ft. (2.13 m)
Regular price
$8.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N201-007-RD | Cat6 Gigabit Snagless Molded (UTP) Etherne...
Regular price
$8.50
Unit price
Description
Description
Tripp-Lite N201-007-RD | Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), Red, 7 ft. (2.13 m)
Features
- Premium cabling for category 6, category 5e and category 5 applications
- Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
- Length: 7-ft./Color: Red/Connectors: RJ45 male
- Drastically reduce impedance and structural return loss compared to standard 100MHz wire
- High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum
- Feature molded connectors with integral strain relief
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
- PVC 4-pair stranded UTP
- Deliver stable performance up to 550MHz/1 Gbps
Specifications
Specifications
Overview
| UPC Code | 37332125255 |
|---|---|
| Technology | Cat6 |
Physical
| Color | Red |
|---|---|
| Cable Shielding | UTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Outer Diameter (OD) | 6.0mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 24 AWG |
| Cable Length (ft.) | 7 |
| Cable Length (in.) | 84 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.20 |
Environmental
| Operating Temperature Range | 14 to 122 F (-10 to 50 C) |
|---|---|
| Storage Temperature Range | 5 to 140 F (-15 to 60 C) |
Communications
| Bandwidth per TIA Standard | 250 MHz |
|---|---|
| Maximum Bandwidth as Tested | 500 MHz |
| Network Speed | 1Gbps |
| IEEE Standards Supported | 802.3an |
Connections
| Side A - Connector 1 | RJ45 (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (MALE) |
| Crossover Wiring | No |
Standards & Compliance
| Certifications | RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
