Brand: Tripp-Lite
|
SKU:
812433

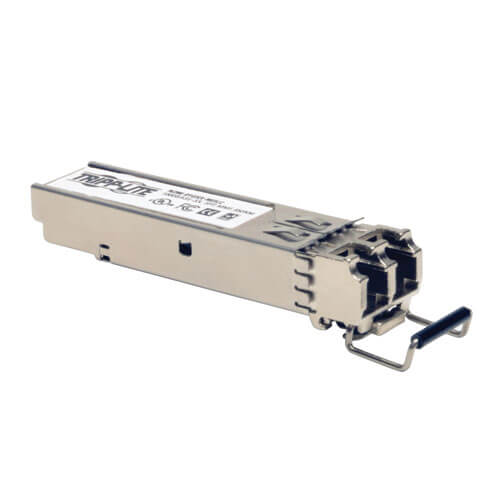

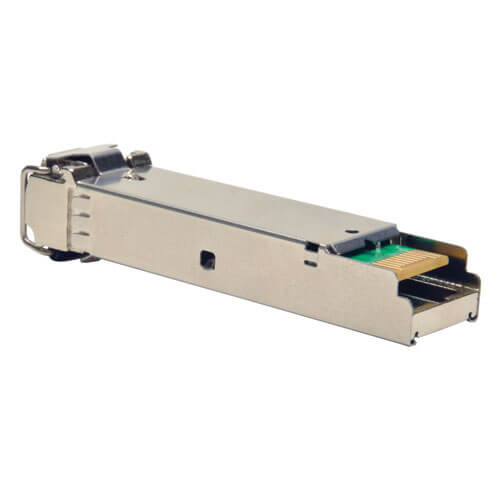

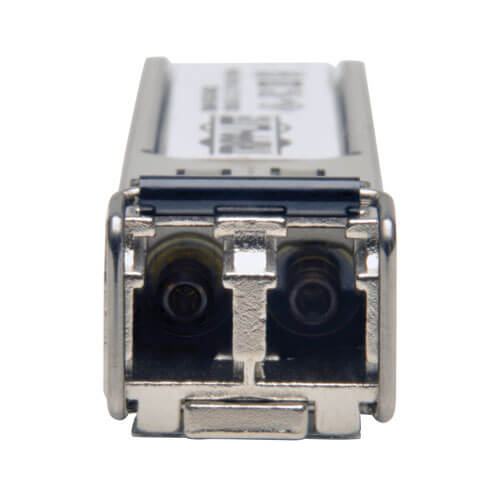

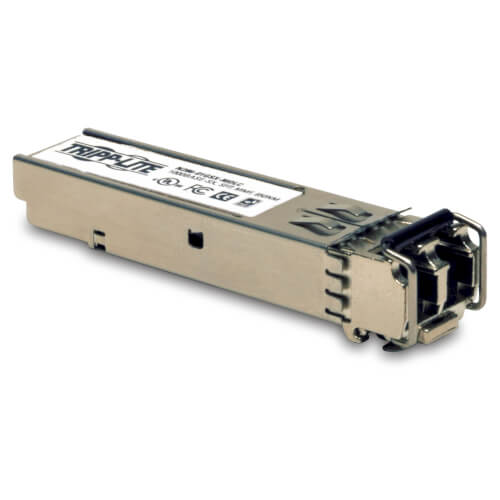

Tripp-Lite N286-01GSX-MDLC | Cisco-Compatible GLC-SX-MMD 1000Base-SX SFP Transceiver, DDM, Multimode LC, 850nm, 550M
Regular price
$102.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N286-01GSX-MDLC | Cisco-Compatible GLC-SX-MMD 1000Base-S...
Regular price
$102.10
Unit price
Description
Description
Tripp Lite N286-01GSX-MDLC, SFP+ (mini-GBIC) transceiver module, is designed for use with Cisco networking equipment, and is functionally equivalent to Cisco part number GLC-SX-MMD=. This transceiver is manufactured to meet or exceed the specifications of the original Cisco unit, and to comply with Multi Source Agreement (MSA) standards. Tripp Lite guarantees 100% compatibility with Cisco networking hardware, and will initialize and perform identically to an OEM transceiver. See "Features" tab for a list of most common Cisco devices used with this model transceiver.
Features
- Cisco switch compatible...Comparable to GLC-SX-MMD=
- Compliant with SFP Multi-Source Agreement (MSA) standards
- 1000Base-SX transceiver supports data transfer rates up to 1.25Gbps
- 300 meter transmission distance using 62.5/125 Multimode cabling
- 500 meter transmission distance using 50/125 Multimode cabling
- 850nm wavelength VCSEL Laser
- Duplex LC Connector
- Electrical interface compliant with SFF-8431
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-pluggable
Special Features
| Data Transfer Rate | 1Gbps |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332185488 |
|---|---|
| Technology | SFP+/QSPP+/QSFP28 |
Physical
| Shipping Dimensions (hwd / in.) | 0.87 x 2.87 x 4.84 |
|---|---|
| Shipping Weight (lbs.) | 0.1 |
| Unit Dimensions (hwd / in.) | 0.33 x 0.52 x 2.24 |
| Unit Weight (lbs.) | 0.05 |
Environmental
| Storage Temperature Range | 0.33 x 0.52 x 2.24 |
|---|---|
| Relative Humidity | 5 to 95% RH, Non-Condensing |
Communications
| Transmission Distance | 550 m |
|---|
Connections
| Side A - Connector 1 | SFP+ (MALE) |
|---|---|
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
