Brand: Tripp-Lite
|
SKU:
9810428

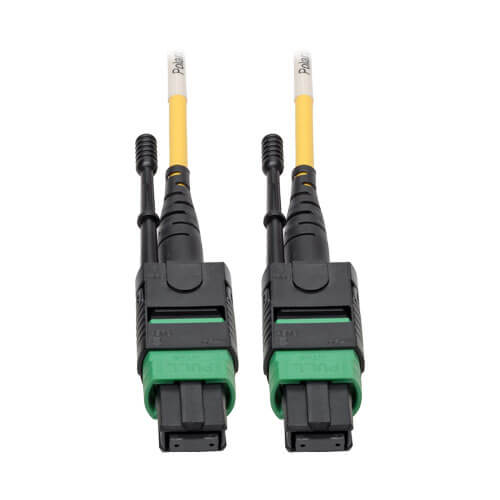

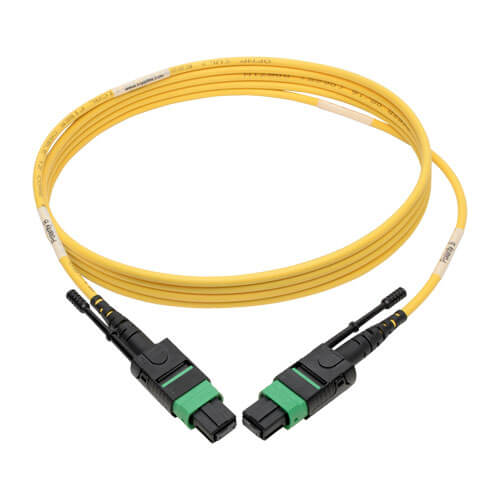

Tripp-Lite N390-02M-12-AP | MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 2 m (6.6 ft.)
Regular price
$341.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N390-02M-12-AP | MTP/MPO (APC) Singlemode Patch Cable (F...
Regular price
$341.16
Unit price
Description
Description
Premium 8.3/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals over long distances. Designed for enterprise applications in wiring closets, telecom rooms and data centers.
Features
- 9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

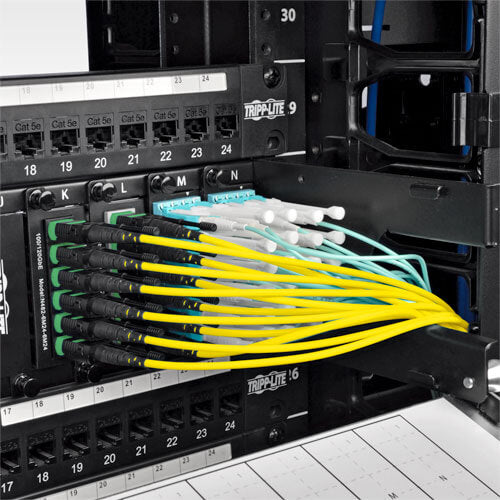

- Designed for enterprise applications in wiring closets, telecom rooms and data centers
- Recommended for QSFP+ applications in enterprise installations
- Plenum-rated jacket suited for ceilings, walls and ducts
- Yellow-colored for identification as a singlemode cable

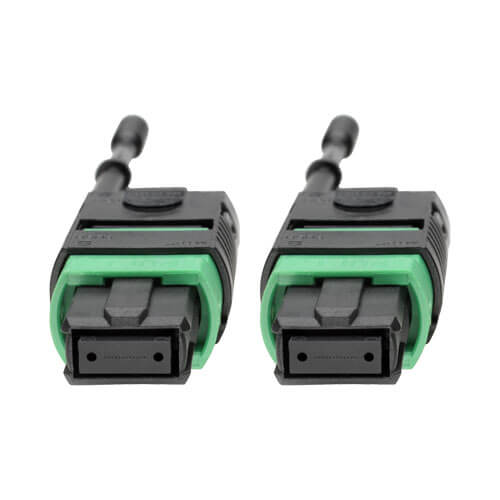

- MTP/MPO APC Connectors with Push/Pull Tabs
- 12-fiber female connectors 12 times denser than SC connectors
- APC connector angled to prevent light from reflecting back into laser
- Push/pull tabs easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Specifications
Specifications
Overview
| UPC Code | 37332205353 |
|---|---|
| Technology | MTP/MPO; Singlemode |
Physical
| Cable Jacket Color | Yellow |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 9 micron |
| Number of Fibers | 12 |
| Cable Length (ft.) | 6.6 |
| Cable Length (in.) | 78.7 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.06 |
Environmental
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
Communications
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|
Connections
| Side A - Connector 1 | 12-STRAND MTP (FEMALE) |
|---|---|
| Side A - Connector 2 | 12-STRAND MTP (FEMALE) |
| Side B - Connector 1 | 12-STRAND MTP (FEMALE) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
Documents and Downloads
Documents and Downloads
