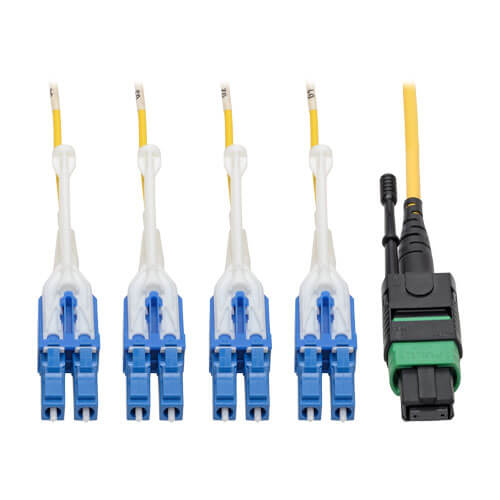

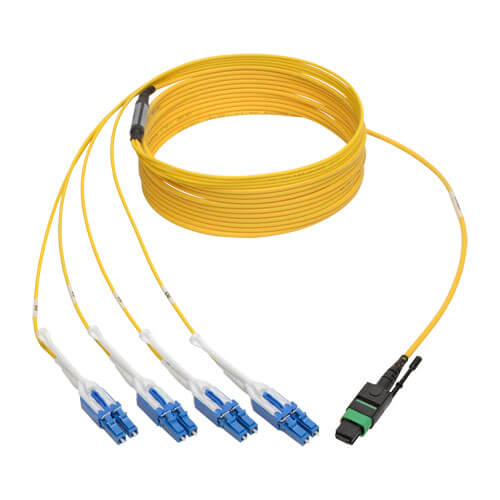

Tripp-Lite N390-05M-8LC-AP | MTP/MPO (APC) to 8xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 5 m (16 ft.)
Regular price
$396.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N390-05M-8LC-AP | MTP/MPO (APC) to 8xLC (UPC) Singlemode...
Regular price
$396.55
Unit price
Description
Description
Premium 8.3/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations.
Features
- 9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

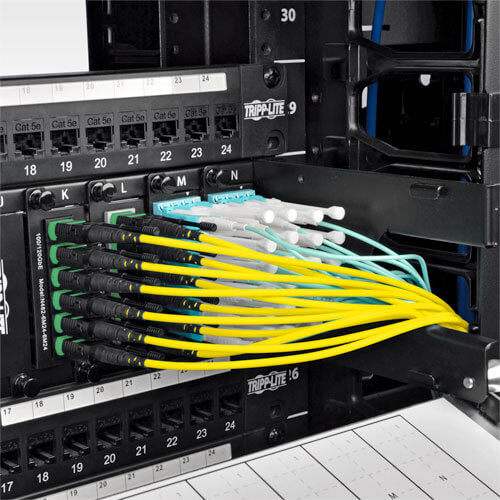

- Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
- Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
- Plenum-rated jacket suited for ceilings, walls and ducts
- Yellow-colored for identification as a singlemode cable

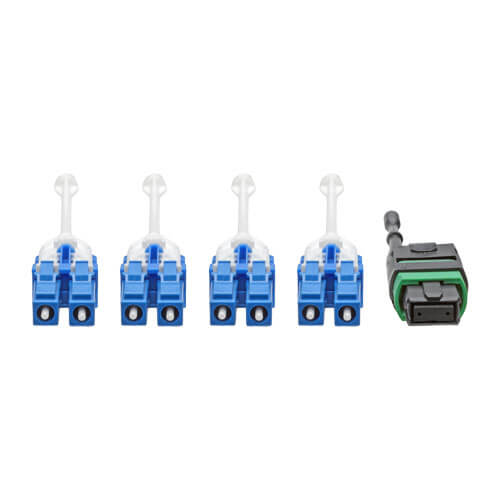

- MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
- MTP/MPO female connector and 8 LC duplex male connectors—no splicing required
- 12-fiber MTP/MPO connector 12 times denser than SC connector
- APC connector angled to prevent light from reflecting back into laser
- UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
- Push/pull tabs easy to install and remove with one hand
- Error-Free Signal Transfer
- Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
- 100% tested for low insertion loss and back reflection
- Slim, space-saving uniboot design easier to manage in crowded applications
Specifications
Specifications
Overview
| UPC Code | 37332205605 |
|---|---|
| Technology | MTP/MPO; Singlemode |
Physical
| Cable Jacket Color | Yellow |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 9 micron |
| Number of Fibers | 12 |
| Cable Length (ft.) | 16.4 |
| Cable Length (in.) | 196.9 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.21 |
Environmental
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
Communications
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|
Connections
| Side A - Connector 1 | 12-STRAND MTP (FEMALE) |
|---|---|
| Side A - Connector 2 | (8) LC DUPLEX (MALE) WITH PULL/PUSH TAB |
| Side B - Connector 1 | (8) LC DUPLEX (MALE) WITH PULL/PUSH TAB |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
