Brand: Tripp-Lite
|
SKU:
812468

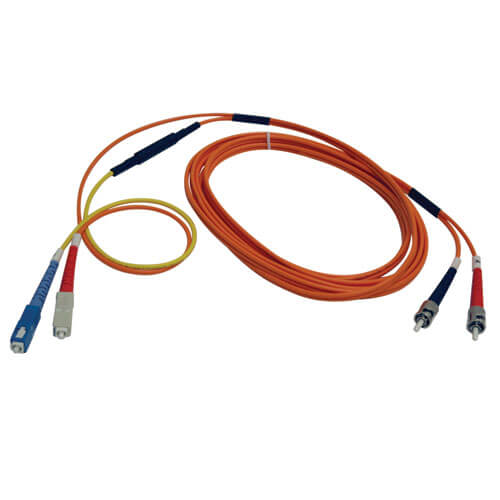

Tripp-Lite N420-03M | Fiber Optic Mode Conditioning Patch Cable ( SC / Mode Conditioning to ST ), 3M (10 ft.)
Regular price
$90.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N420-03M | Fiber Optic Mode Conditioning Patch Cable ( S...
Regular price
$90.97
Unit price
Description
Description
Tripp-Lite N420-03M | Fiber Optic Mode Conditioning Patch Cable ( SC / Mode Conditioning to ST ), 3M (10 ft.)
Tripp-Lite - N420-03M - Features
- SC / Mode Conditioning to ST Duplex Fiber Patch Cable - 3 Meter
- 62.5/125 and 9/125
- Use Singlemode Transceivers on Multimode Fiber Backbones
- Offsets the Singlemode Laser launch from the center of a Multimode fiber
- Available in a variety of connector combinations
Specifications
Specifications
Tripp-Lite - N420-03M - Specifications
| UPC Code | 37332119193 |
|---|---|
| Optical Mode | OM1 |
| Cable Jacket Color | Orange; Yellow |
| Connector Color | Blue; Gray; Black; Red |
| Cable Jacket Material | PVC |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 62.5 |
| Number of Fibers | 2 |
| Cable Length (ft.) | 9.8 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 0.64 x 14.99 x 21.59 |
| Shipping Weight (lbs.) | 0.1 |
| Fiber Cable Length | 3M (9.8 ft) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Attenuation @ 850NM | 3.0 dB/km |
| Insertion Loss | MM to MM 0.20 dB; MM to SM 0.30 dB |
