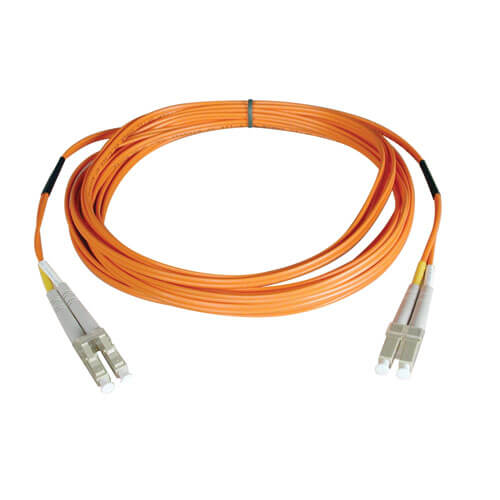

Tripp-Lite N520-01M | Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 1M (3 ft.)
Regular price
$20.88
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N520-01M | Duplex Multimode 50/125 Fiber Patch Cable (LC...
Regular price
$20.88
Unit price
Brand: Tripp-Lite
|
SKU:
642328
Regular price
$20.88
Unit price
Description
Description
Tripp-Lite N520-01M | Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 1M (3 ft.)
Features
- Constructed with 50/125 micron cable
- Length: 1-meter
- Use on fiber and fibre channel installations
- LC male to LC male connectors
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Number of fibers: 2
- Fiber type: All glass graded index
- Core diameter: Two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: Acrylate
- Secondary coating diameter: 900+/-50 microns
- Secondary coating material: PVC
- Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
- Numerical aperture: .275 nominal
- Proof test level: 100,000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
Special Features
| Push/Pull Tabs | No |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332119520 |
|---|---|
| Bandwidth @ 850NM | 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum |
| Numerical Aperture | .275 nominal |
Physical
| Cable Jacket Color | Orange |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 50 micron |
| Number of Fibers | 2 |
| Cable Length (ft.) | 3.3 |
| Cable Length (in.) | 39.4 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.02 |
Communications
| Network Speed | 1Gbps |
|---|---|
| Attenuation @ 850NM | 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum |
Connections
| Side A - Connector 1 | LC DUPLEX (MALE) |
|---|---|
| Side A - Connector 2 | LC DUPLEX (MALE) |
| Side B - Connector 1 | LC DUPLEX (MALE) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
