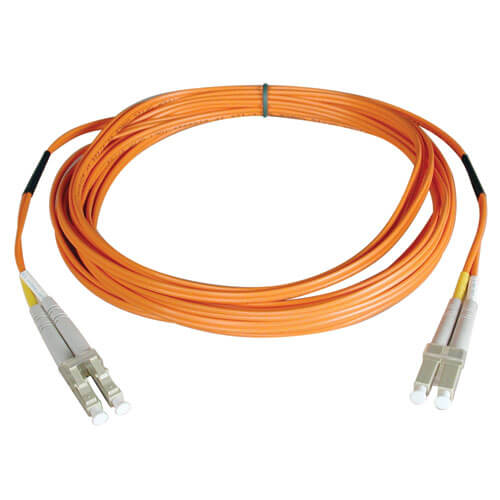

Tripp-Lite N520-04M | Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 4M (13 ft.)

Features

• Constructed with 50/125 micron cable
• Length - 4Meter
• Use on fiber and fibre channel installations
• LC male to LC male connectors
• Higher bandwidth optimized for gigabit and 10Gbps networks
• Backward compatible with 62.5 micron fiber
• Built-in headroom for future applications
• Number of fibers: 2
• Fiber type: all glass graded index
• Core diameter: two 50+/-3 microns
• CLAD diameter: 125+/-2 microns
• Primary coating diameter: 245+/-15 microns
• Primary coating material: acrylate
• Secondary coating diameter: 900+/-50 microns
• Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric aperture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
