Brand: Tripp-Lite
|
SKU:
378788

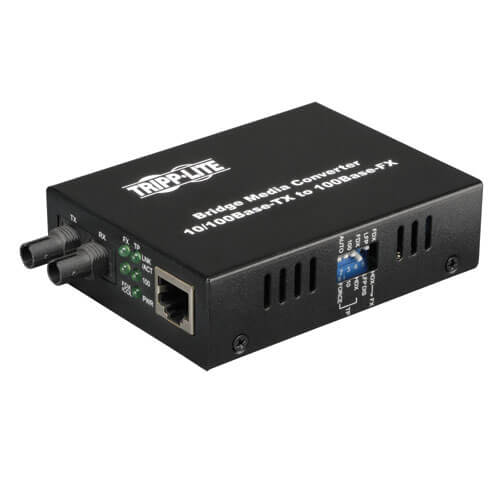

Tripp-Lite N784-001-ST | Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm
Regular price
$103.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N784-001-ST | Fiber Optic - 10/100BaseT to 100BaseFX-ST ...
Regular price
$103.12
Unit price
Description
Description
Tripp Lite's N784-001-ST, 10/100 Multimode Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable). Tripp Lite
Features
- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Switch selectable half or full duplex operation on the fiber port
- Fiber lengths up to 2Km

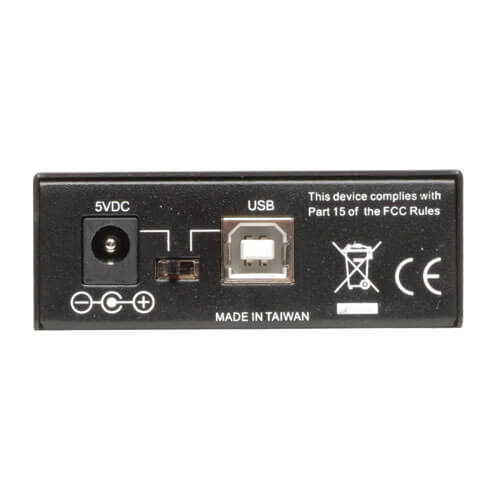

- 2 Power Choices - AC-DC Adapter or USB

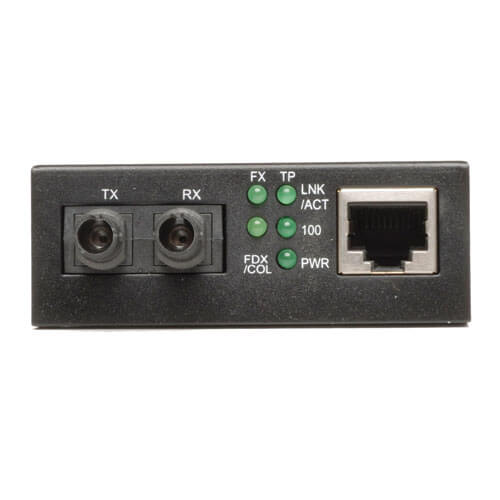

- 5 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75"L x 2.75"W x 1"H
- Wavelength: 1310nm
- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
- Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
Specifications
Specifications
Overview
| UPC Code | 37332130907 |
|---|---|
| AC Adapter | Input: 100-240V |
| Technology | Cat5/5e; Multimode |
Physical
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 9.25 x 2.17 x 4.92 |
| Shipping Weight (lbs.) | 0.94 |
Connections
| Side A - Connector 1 | RJ45 (FEMALE) |
|---|---|
| Side B - Connector 1 | ST DUPLEX (FEMALE) |
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
