Brand: Tripp-Lite | SKU: 812508

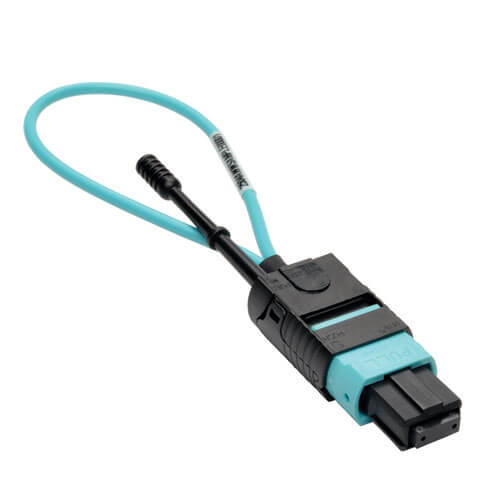

Tripp-Lite N844-LOOP-12F | MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - Female

$118.91

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp Lite N844-LOOP-12F MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor. Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.

Features

MTP / MPO OM3 Loopback Tester
Push-pull tab for quick disconnect
Protective dust cover included for protection during storage
4-inch overall length
Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7

Specifications

Overview

UPC Code	37332188205
Technology	Multimode; MTP/MPO
Optical Mode	OM3

Physical

Cable Jacket Color	Aqua
Clad Diameter	125 micron
Core Diameter	50 micron
Number of Fibers	12
Cable Length (ft.)	0.3
Cable Length (in.)	4
Shipping Dimensions (hwd / in.)	5.90 x 4.00 x 0.50
Shipping Weight (lbs.)	0.01

Environmental

Operating Temperature Range	-4 TO 140 F (-20 TO 60 C)
Storage Temperature Range	-4 TO 140 F (-20 TO 60 C)

Communications

Attenuation @ 1310NM	0.7dB/Km
Attenuation @ 850NM	2.5dB/Km

Connections

Side A - Connector 1	12-STRAND MTP (FEMALE)
Side A - Connector 2	12-STRAND MTP (FEMALE)
Side B - Connector 1	12-STRAND MTP (FEMALE)

Warranty

Product Warranty Period (Worldwide)	Lifetime limited warranty

Documents and Downloads
