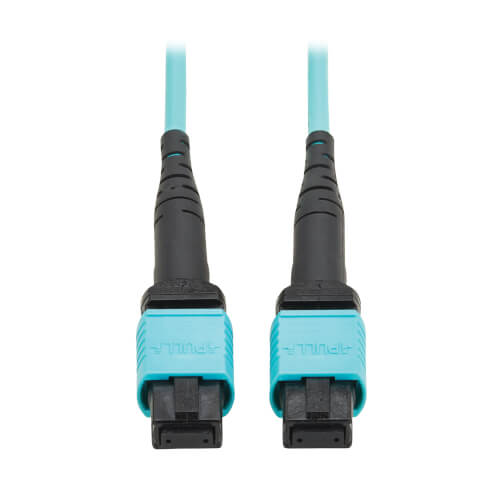

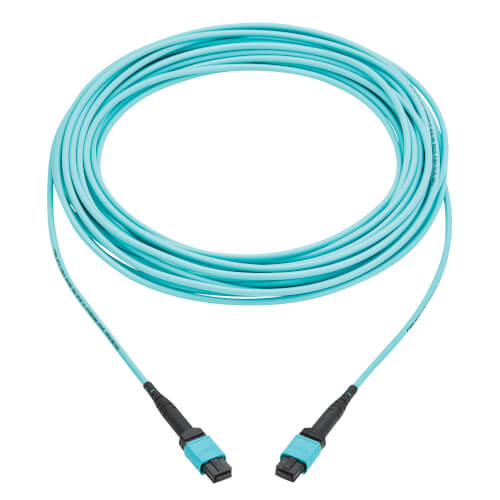

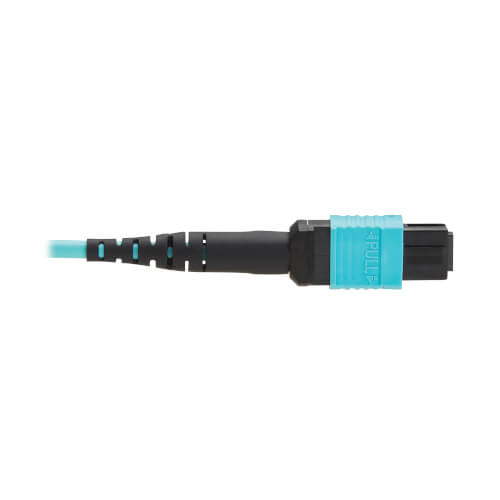

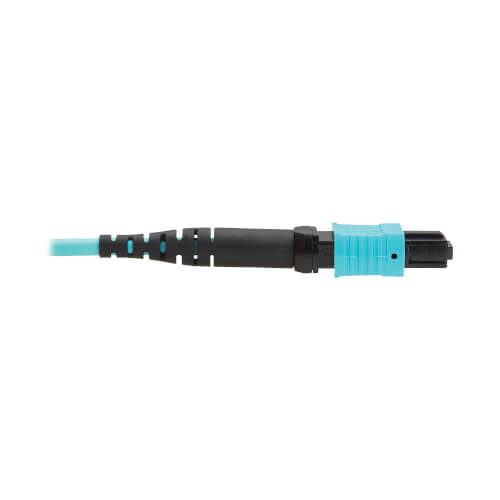

Tripp-Lite N845B-10M-12TAA | 100G Multimode 50/125 OM4 Fiber Optic Cable (12F MPO/MPO-PC F/F), Type-B Polarity, OFNP, Aqua, 10 m (32.8 ft.), TAA
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can futu re-proof your current application for an eventual upgrade to 400 Gb. Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch ad prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors’ slim boots allow eas y one-handed installation and removal of the cable. TAA-Compliant for GSA Schedule Purchases
The N845B-10M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and otherfederal procurement contracts.
Tripp-Lite - N845B-10M-12TAA - Features
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- This product is covered by a Lifetime Limited Warranty
Specifications
Specifications
Tripp-Lite - N845B-10M-12TAA - Package Includes
- N845B-10M-12TAA 100G Multimode 50/125 OM4 Fiber Optic Cable, Aqua, 10 m (32.8 ft.), TAA
Tripp-Lite - N845B-10M-12TAA - Specifications
| UPC Code | 37332292209 |
|---|---|
| Technology | Fiber; Multimode |
| Optical Mode | OM4 |
| Endface Polish | PC |
| Polarity | Type B (cross) |
| Color | Aqua |
| Cable Jacket Material | PVC |
| Number of Fibers | 12 |
| Cable Length | 10 |
| Fiber Cable Length | 5M (16.4 ft) |
| Operating Temperature Range | -4° to 158°F (-20° to 70°C) |
| Insertion Loss | ?0.6dB |
| Return Loss | ? 35dB |
| Minimum Bend Radius | 20MM (Dynamic); 10MM (Static) |
| Product Warranty Period | Lifetime limited warranty |
