Brand: Tripp-Lite
|
SKU:
642403

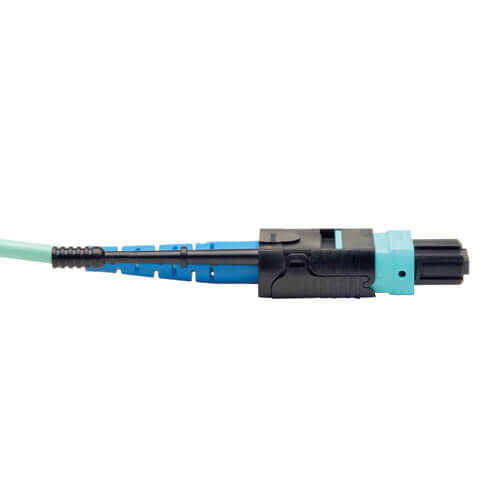

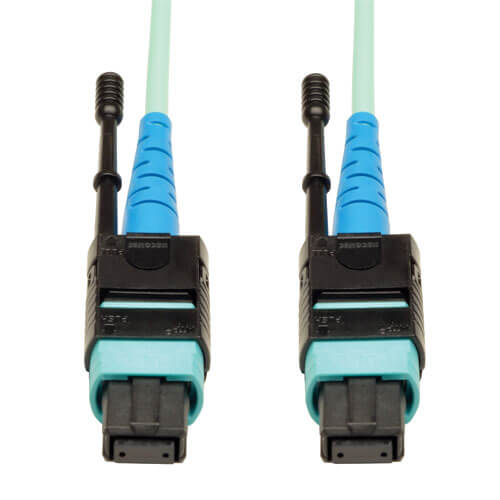

Tripp-Lite N846-02M-24-P | 100G MTP/MPO Multimode OM3 Plenum-Rated Fiber Optic Cable (CXP), 24 Fiber, 100GBASE-SR10, Push/Pull Tabs, Aqua, 2 m
Regular price
$560.20
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N846-02M-24-P | 100G MTP/MPO Multimode OM3 Plenum-Rated ...
Regular price
$560.20
Unit price
Description
Description

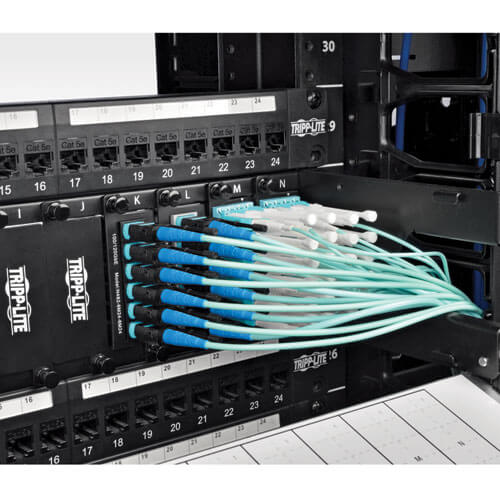

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; install / remove with one hand. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 24 fibers, it provides up to 24 times the density, thereby offering savings in circuit card and rack space. N846 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 100GbE.
Features
- MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
- 24 times the density of SC style connectors
- No need for long fan-out cables or individual long duplex cable runs
- High Density design cuts down on installation costs
- 50/125 OM3 Rated Multimode Fiber, 850nm
- Plenum rated jacket
- Unique cable ID label for Quality Control and Traceability
- Each cable 100% tested for low insertion loss and back reflection
- Test data supplied with each cable
- Custom lengths available
Special Features
| Push/Pull Tabs | Yes |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332173805 |
|---|---|
| Technology | Multimode; MTP/MPO |
| Optical Mode | OM3 |
Physical
| Cable Jacket Color | Aqua |
|---|---|
| Clad Diameter | 125 micron |
| Core Diameter | 50 micron |
| Number of Fibers | 24 |
| Cable Length (ft.) | 6.6 |
| Cable Length (in.) | 78.7 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.07 |
Communications
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|
Connections
| Side A - Connector 1 | 24-STRAND MTP (FEMALE) |
|---|---|
| Side A - Connector 2 | 24-STRAND MTP (FEMALE) |
| Side B - Connector 1 | 24-STRAND MTP (FEMALE) |
